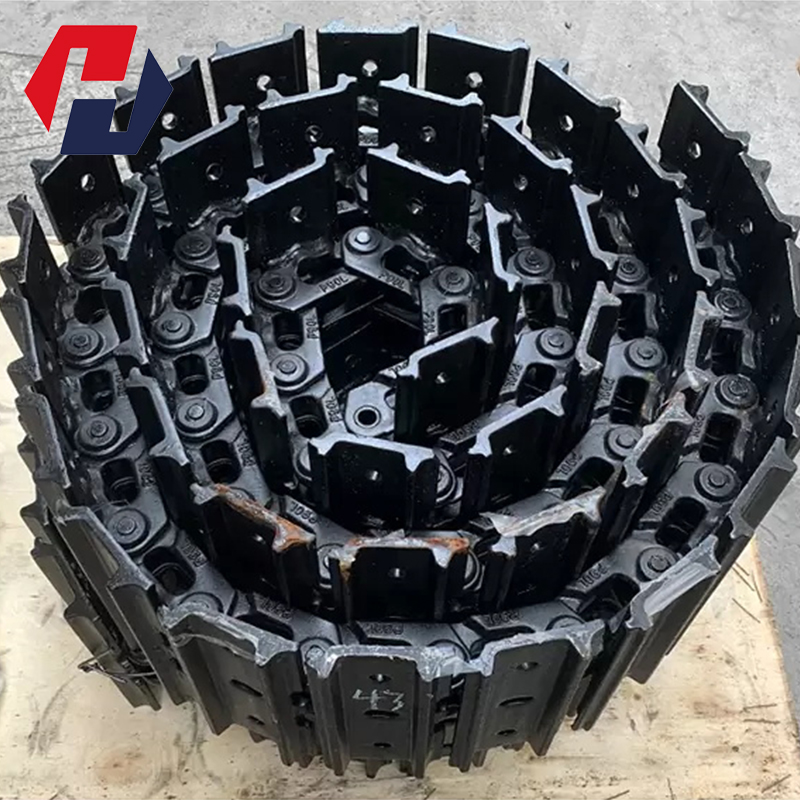

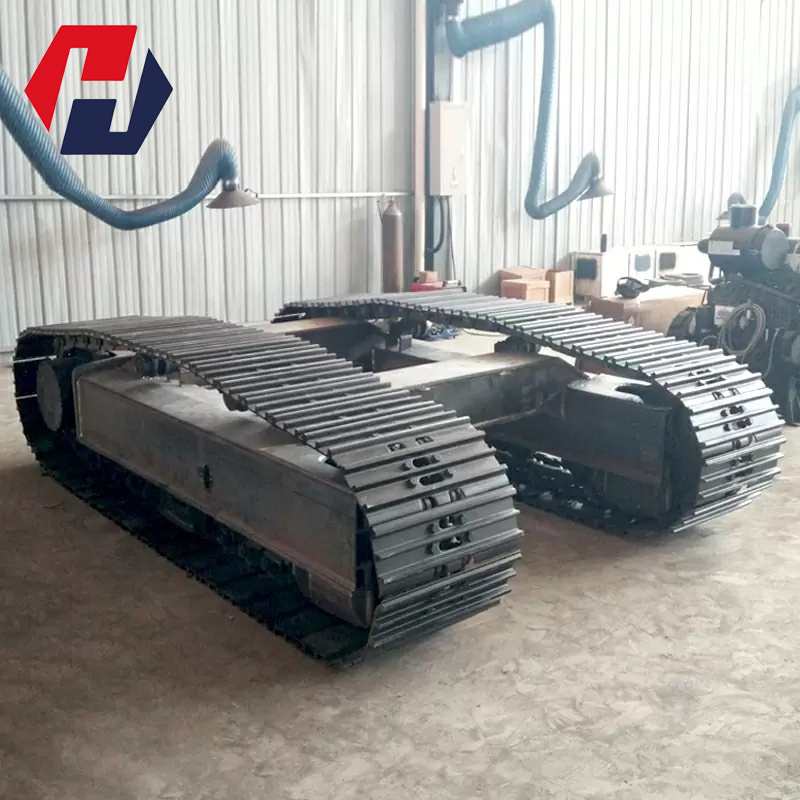

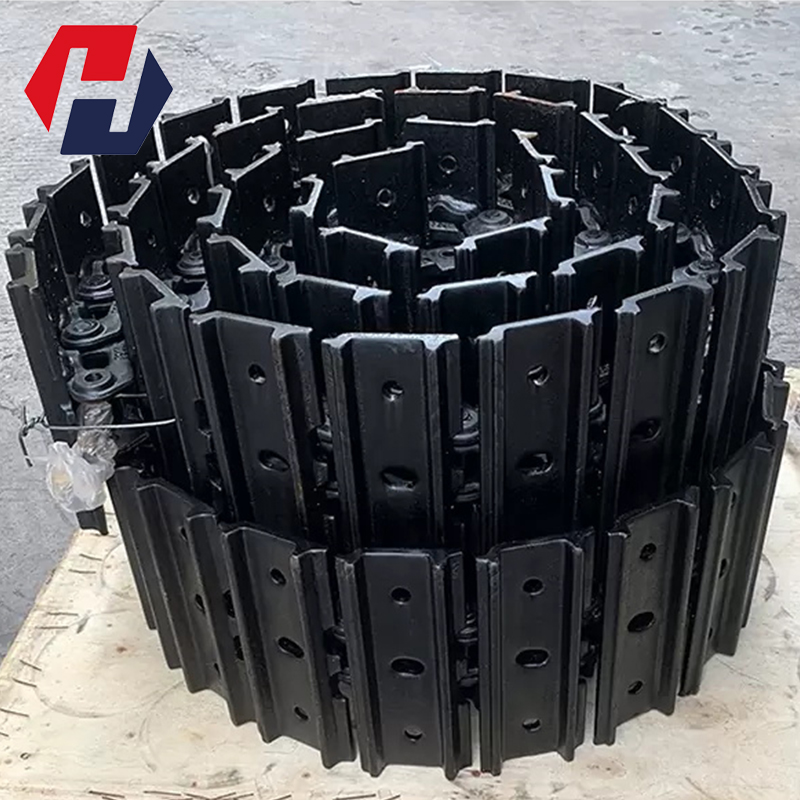

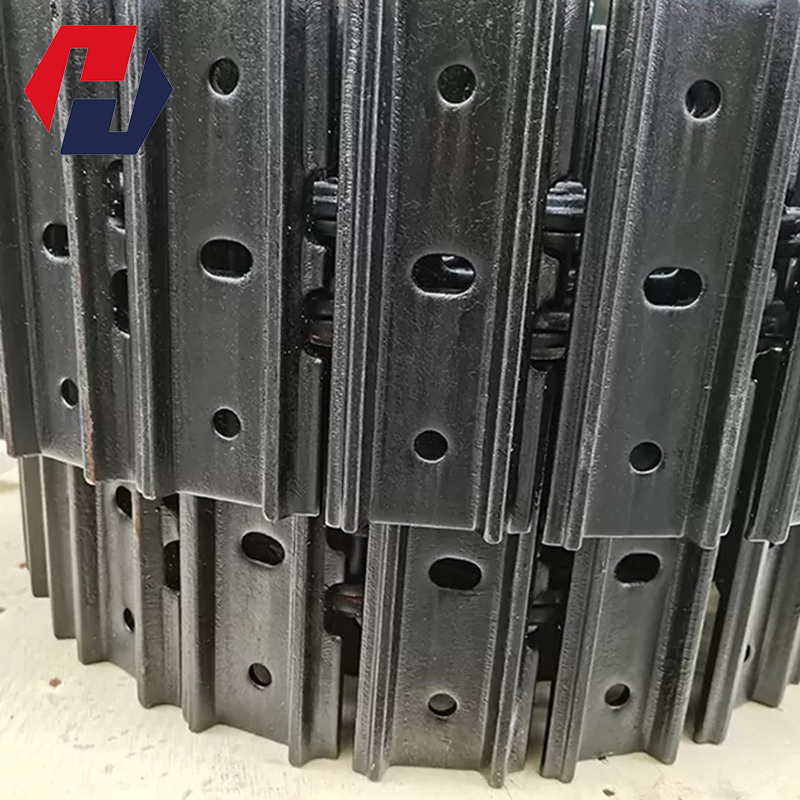

Track Steel
Steel tracks are steel chains around the wheels of tanks, tractors, etc. The track is a flexible chain link driven by the driving wheel and surrounding the driving wheel, the load wheel, the inducer and the carrier pulley. The track is composed of track shoes and track pins.

Contact:Samantha Z

Phone:+8613583116312

Whatsapp/Wechat:+8613583116312

Email: google@s-materialgroup.com

Address: Yingsheng Steel Market, Fengnan District, Tangshan City, Hebei Province

Contact Us
Product Specifications
Product Details



Steel tracks are steel chains around the wheels of tanks, tractors, etc. The track is a flexible chain link driven by the driving wheel and surrounding the driving wheel, the load wheel, the inducer and the carrier pulley. The track is composed of track shoes and track pins. The track pin connects the track shoes to form the track link. There are holes at both ends of the track shoe, which mesh with the driving wheel, and there are guide teeth in the middle, which are used to regulate the track and prevent the track from falling off when the tank turns or rolls. There is a reinforced anti-skid rib (pattern for short) on the side contacting the ground to improve the firmness of the track shoe and the adhesion between the track and the ground.







Material25MnB
FinishSmooth
ColorsBlack
TechniqueForging / casting
Surface HardnessHRC52-58,deepth:8mm-12mm
Warranty time1 year
CertificationISO9001/CE
Delivery TimeWithin 15 days after contract established









BRANDCATALOGUE
BULLDOZERD20D30D31D37D40D41D45D50D60

D65D68D75D80D85D150D155D275D355

D3CD3DD4CD4DD4HD5D6CD6DD6H

D7GD8KD8ND9ND10ND11N


KOMATSUPC30PC40PC45PC60PC75PC100PC120PC150PC200

PC220PC300PC350PC400




CATERPILLARE70BE110E120BE215E235E307E311E312E322

E180E240E200BE320E300E300BE330E325
HITACHIEX30EX40EX60EX100EX120EX200EX220EX270EX300

EX400EX600UH043UH052UH53UH07UH081UH082UH083
FIAT-HITACHIFH120FH130FH150FH200FH220FH270FH300

VOLVOEC55EC130EC150EC200EC210EC240EC290EC360
DAEWOODH55DH130DH180DH200DH280DH300DH320

HYUNDAIR60R130R200R210R220R290R320R914
KATOHD250HD400HD450HD700HD770HD820HD1250

KOBELCOSK40SK60SK100SK120SK200SK220SK04-2SK07

SK07N2SK09SK12SK14SK300SK310SK400

JCBJS70JS75JS110JS130JS160JS180JS200JS220

JS240JS260JS300JS330




SUMITOMOSH70SH100SH120SH160SH200SH260SH265SH280SH300

SH340LS2650LS2800LS3400LS4300




MX8SE200SE210SE280MX292SE350


MITSUBISHIMS110MS120MS140MS180







TypeMaterialThicknessWidth (mm)Weight kg/m
LW9025MnB5.5+0.5906.59
LW10125MnB6.0±0.51108.48
LW13525MnB6.0±0.515410.64
LW14025MnB8.5+0.516316.17
LW15425MnB6.0+0.516514.40
LW171A25MnB9.5+0.519021.29
LW171B25MnB8.0+0.519018.40
LW17525MnB8.0±0.519822.21

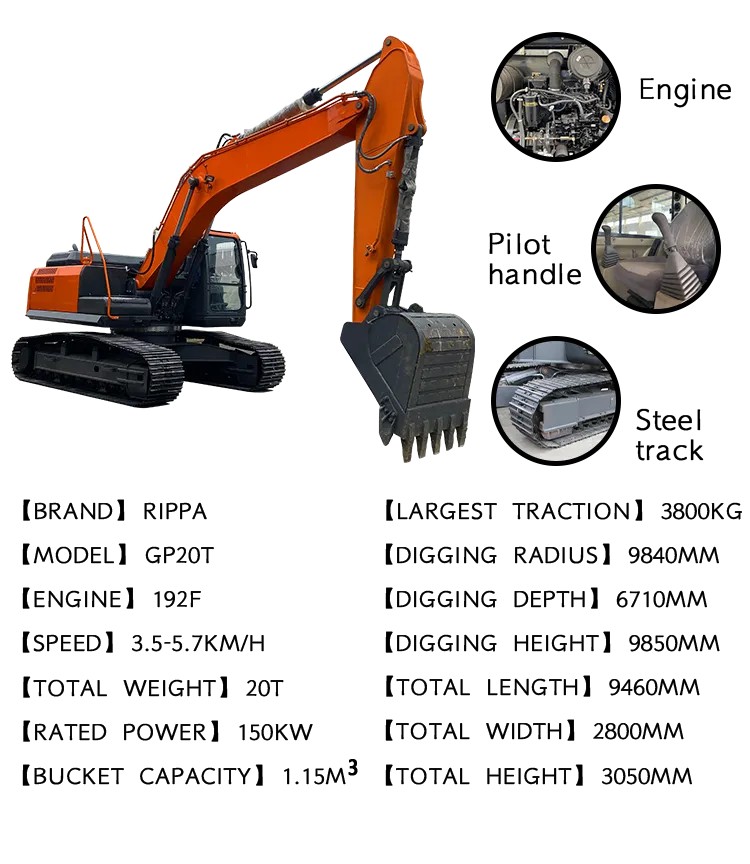

Track Steel detail.png

Advantage:

1 Good tensile-strength based on products specifications.

2 Through quench-tempering processes to guarantee excellent mechanical properties, high

strength and superior wear resistance to bending and breakage.

3 Reduced wear and longer life, adding value to your products further to your business by

maximizing durability of your products.

4 Precise design, carefully manufactured for proper fix easy installation.

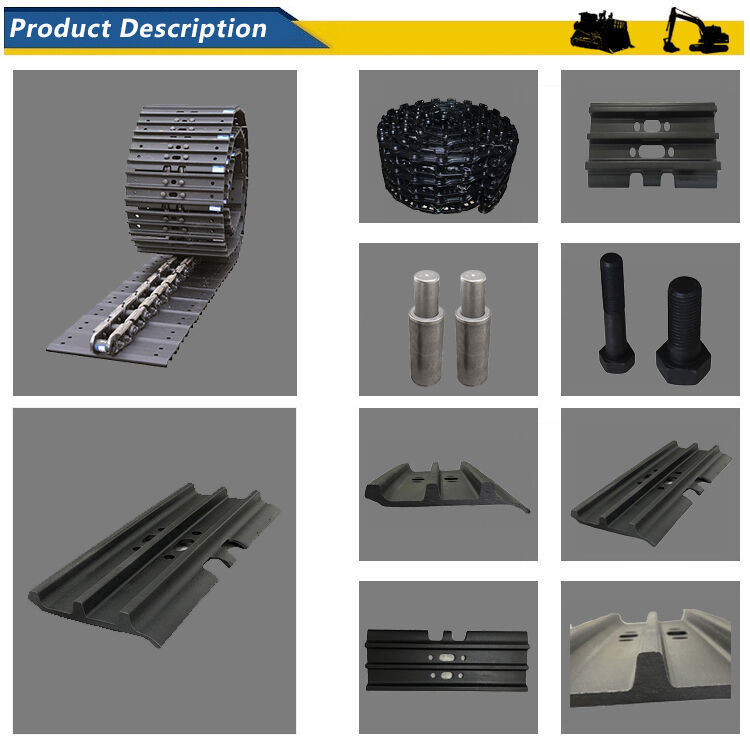

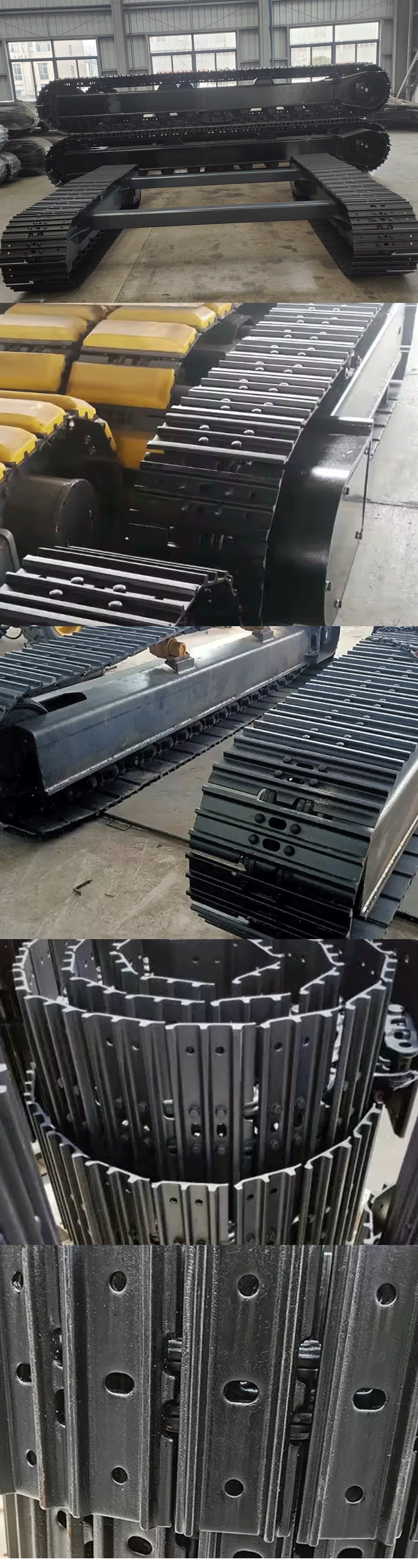

Track Steel details.jpg

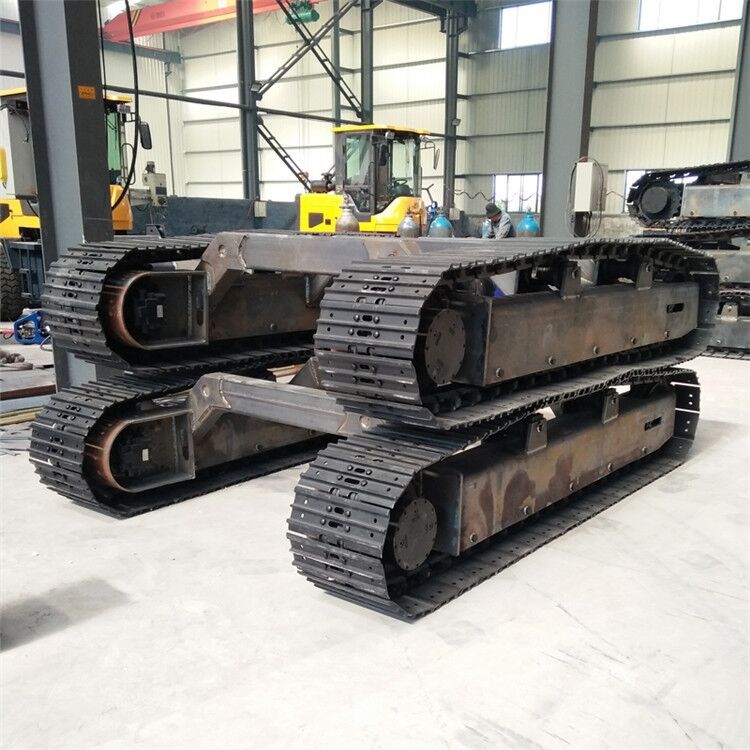

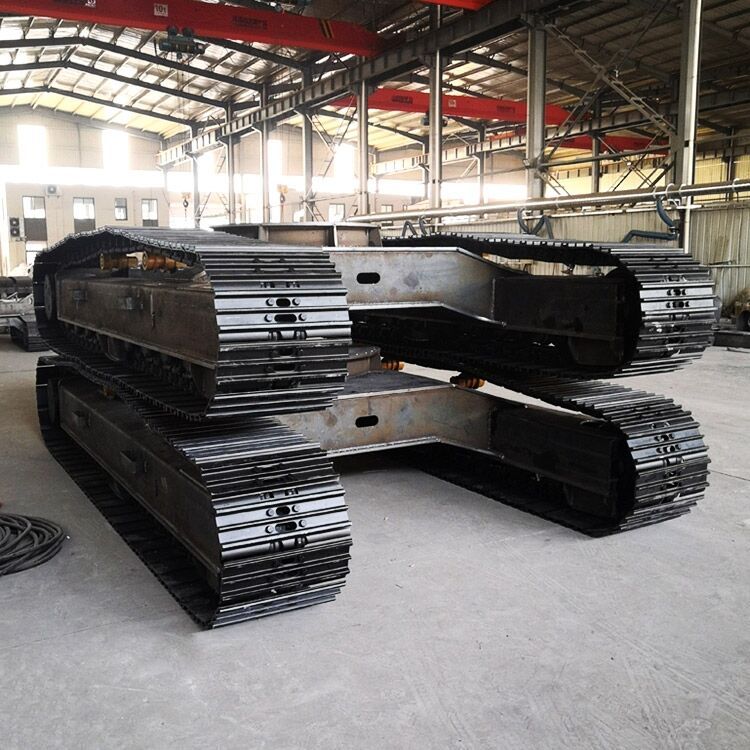

Track Steel apllication.jpg


Track Steel apllication.jpg

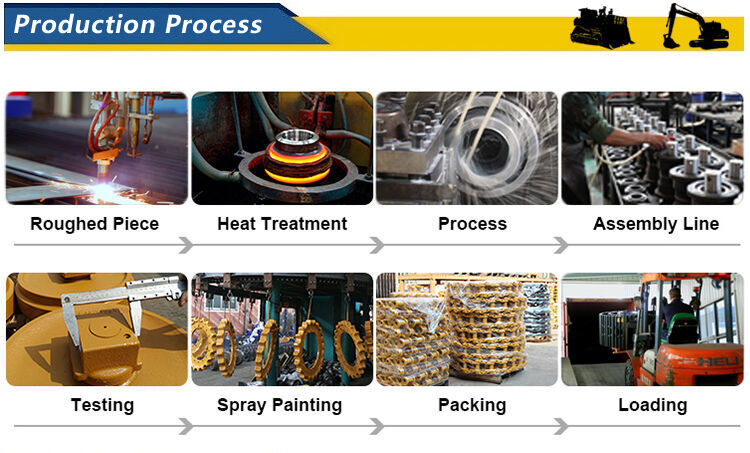

Track Steel production process.jpg

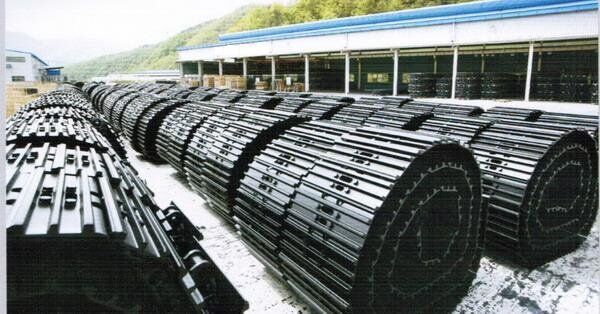

Track Steel transportation.jpg


Track Steel transportation.jpg



FAQ

1. Q: Can I get samples before placing an order?

A: Yes, of course. Usually our samples are free. We can produce according to your samples or

technical drawings.


2. Q: When is your delivery time?

A: Our delivery time is about one week, and the time depends on the number of customers.


3.Q: What are your payment terms?

A: Our usual payment methods are T/T, L/C, D/A, D/P, Western Union, MoneyGram, payment

methods can be negotiated and customized Collaborate with clients.


4. Q: What has your factory done in quality control?

A: We have obtained ISO, CE and other certifications. From material to product, we check every

process to maintain good quality.


5. Q: How do you make sure that what I get is good?

A: We accept all third-party inspections and support you to inspect your goods at any time. If the

goods are unqualified, you can reject this batch of goods.


6. Q: How do you keep our business in good long-term relationship?

A: We maintain good quality and competitive price to ensure the interests of our customers; we

respect every customer as our friend, we do business with them sincerely and make friends. no

matter where they come from.


7.Q: What is the minimum order quantity?

A: The minimum order quantity is 1 ton, which can be customized according to customer

requirements.


8. Q: How can we trust your company?

A: We have been focusing on the steel business for many years, headquartered in Jinan City, Shandong

Province, you are welcome to visit our company and factory at any time. We also sincerely invite all

customers to conduct video conferences.
