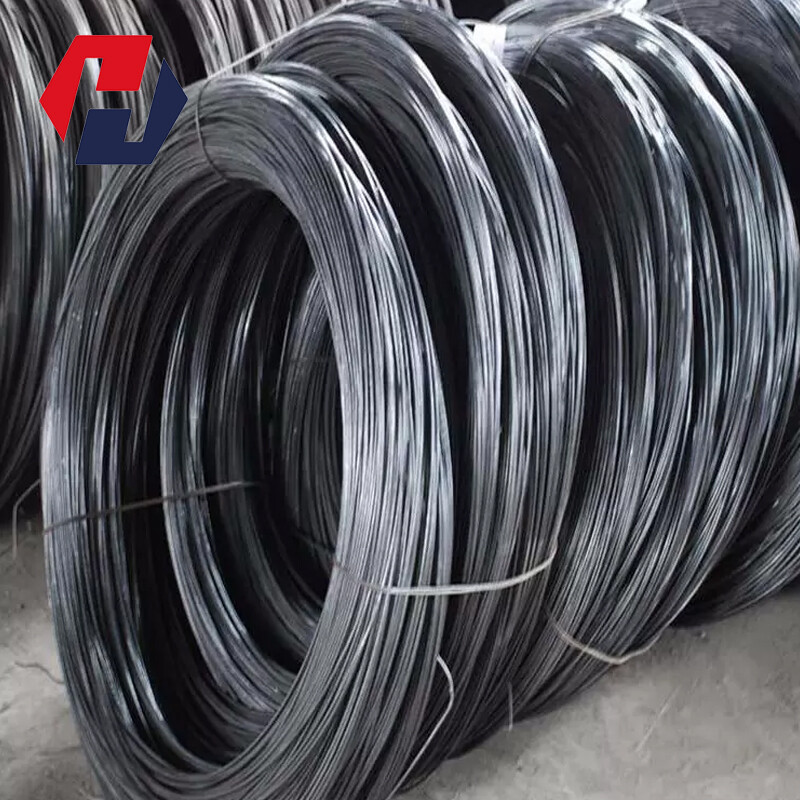

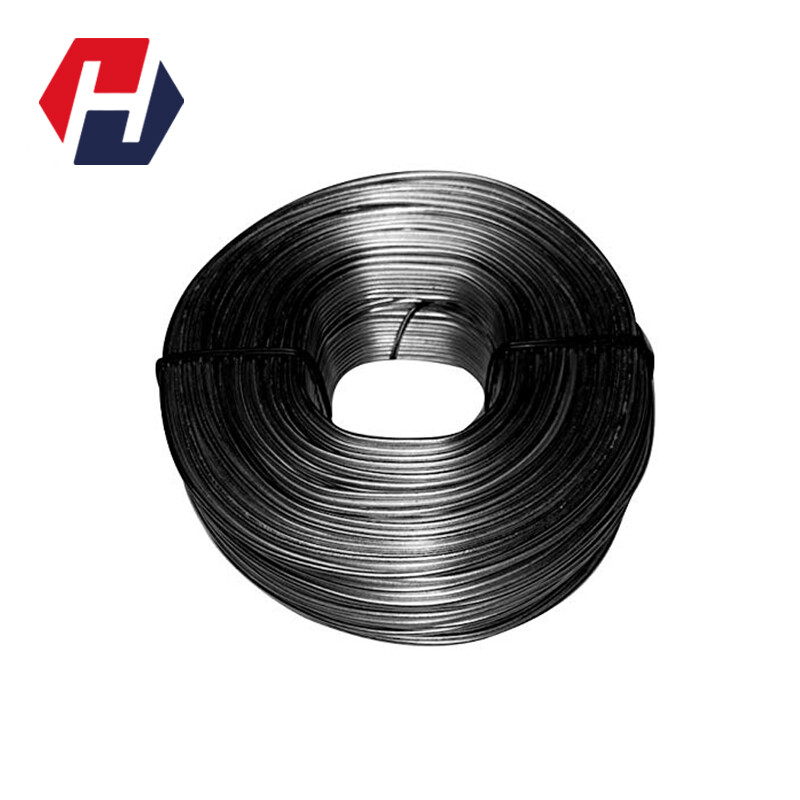

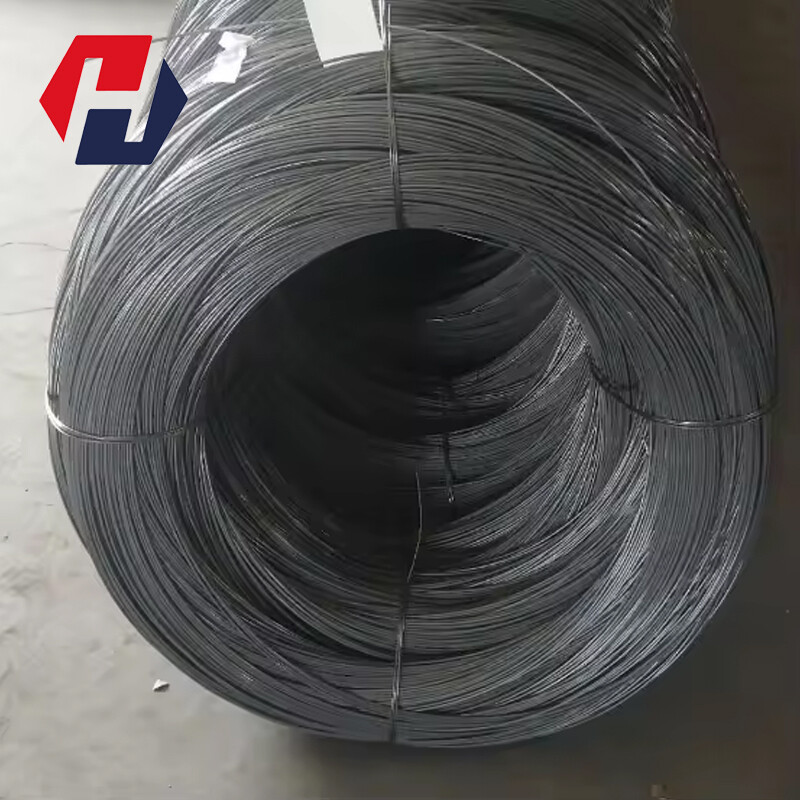

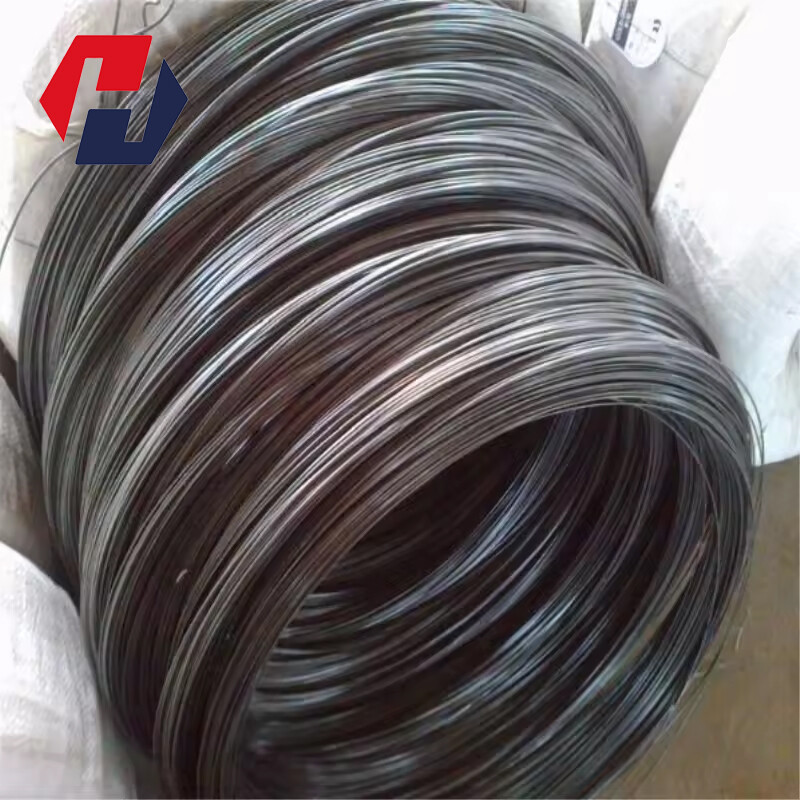

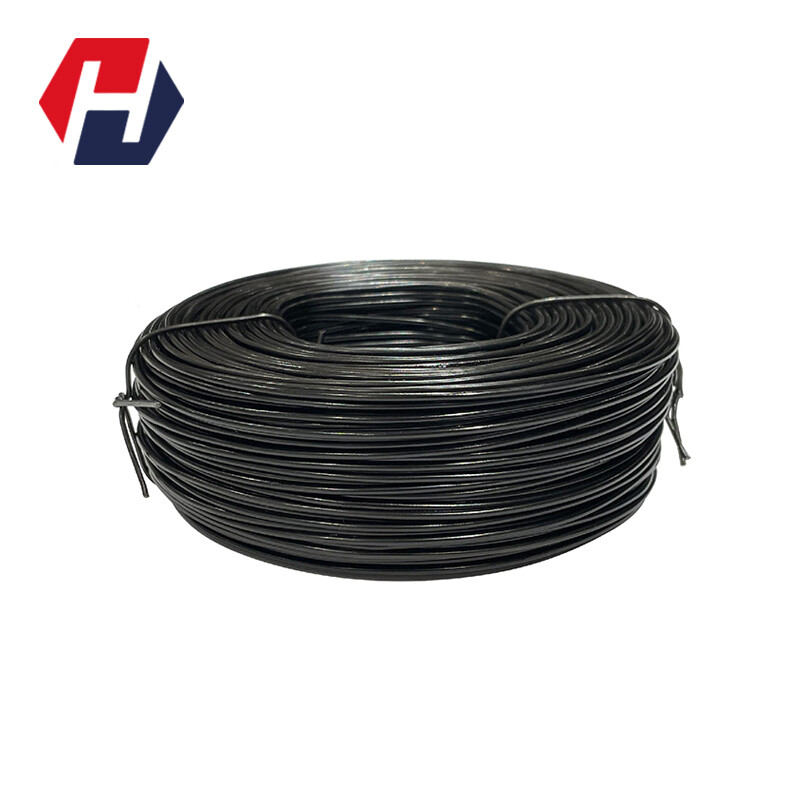

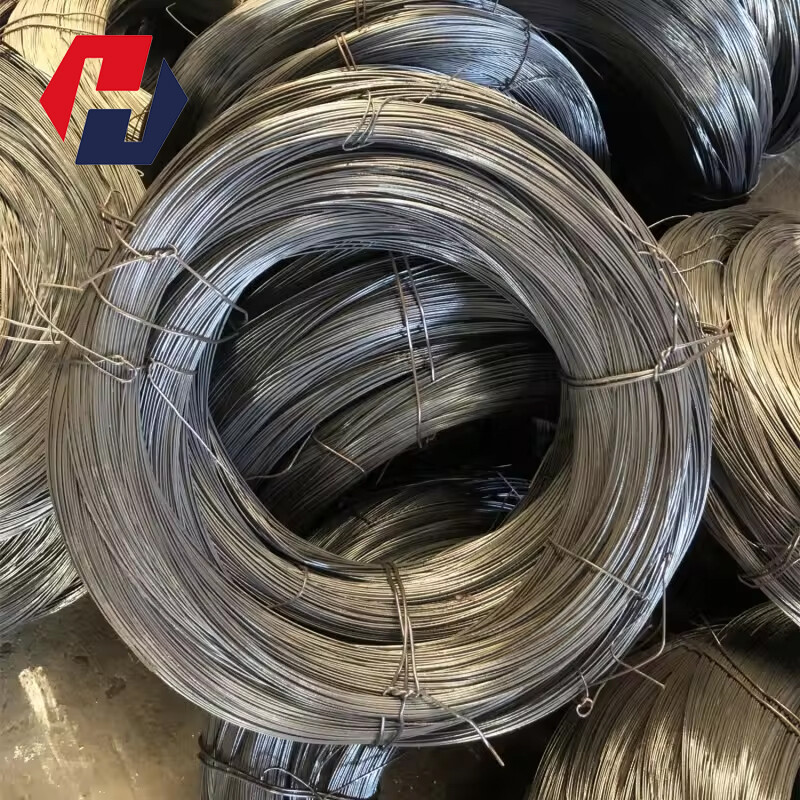

Black Wires

Contact：Samantha Z

Phone：+8613583116312

Whatsapp/Wechat：+8613583116312

Email： google@s-materialgroup.com

Address: Yingsheng Steel Market, Fengnan District, Tangshan City, Hebei Province

Product Specifications

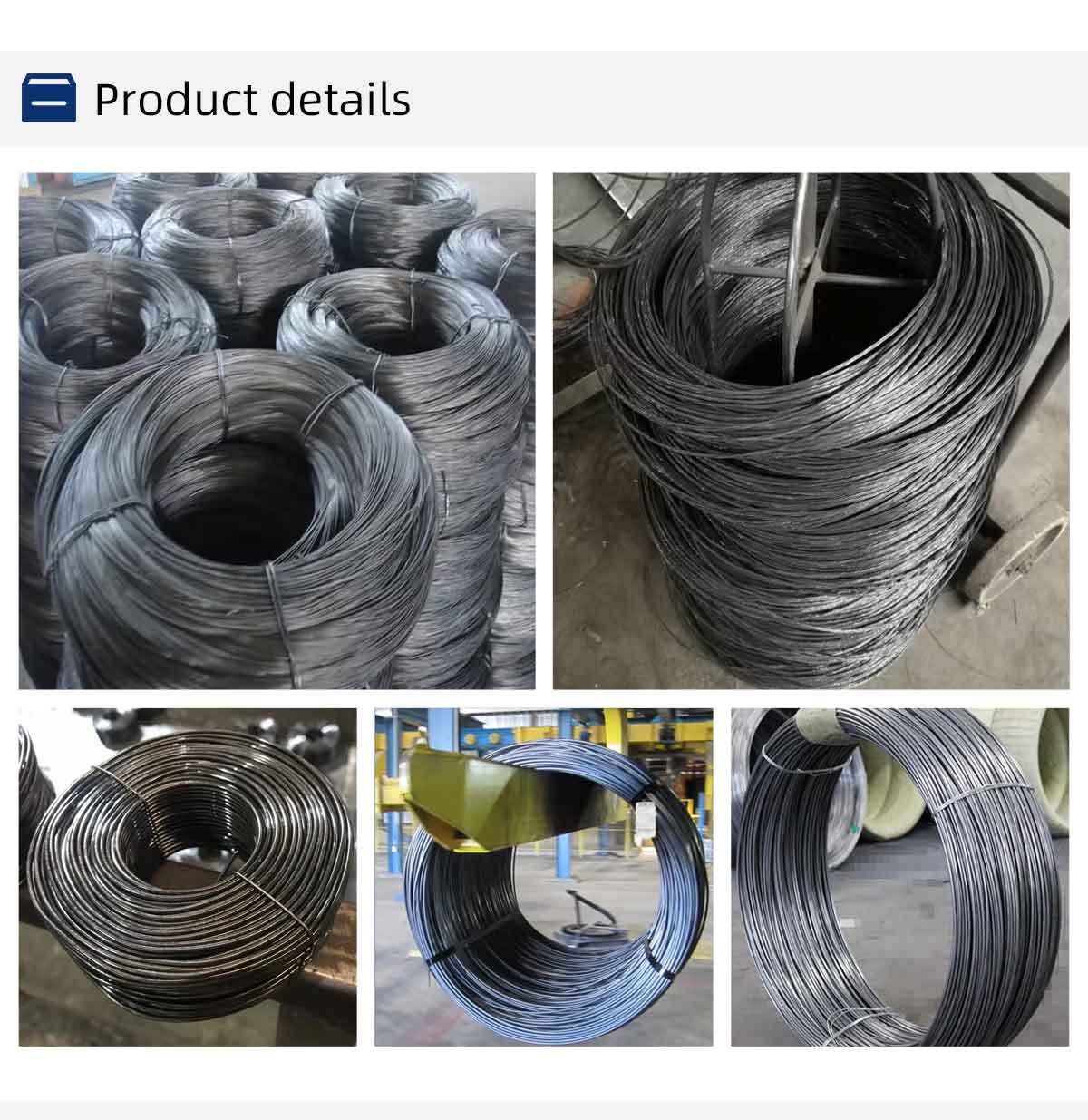

Product Details

Wide in Width	Coil ID: 350-500mm
Metal Wire Drawing	Cold Drawing
Thickness	Metal Thick Wire
Size	1.6mm-6.3mm
Usage	Producing Nails/Reinforcing Welded Mesh
Tensile Strength	500-1000n/mm2
Surface Treatment	Black
Status	Hard State
Specification	500kgs/800kgs per coil
Production Capacity	1000mts/Month

Wire Gauge	SWG mm	BWG mm	In Metric System mm
8 G	4.06	4.19	4.00
9 G	3.66	3.76	-
10 G	3.25	3.40	3.50
11 G	2.95	3.05	3.00
12 G	2.64	2.77	2.80
13 G	2.34	2.41	2.50
14 G	2.03	2.11	-
15 G	1.83	1.83	1.80
16 G	1.63	1.65	1.65
17 G	1.42	1.47	1.40
18 G	1.22	1.25	1.20
19 G	1.02	1.07	1.00
20 G	0.91	0.89	0.90
21 G	0.81	0.813	0.80
22 G	0.71	0.711	0.70
