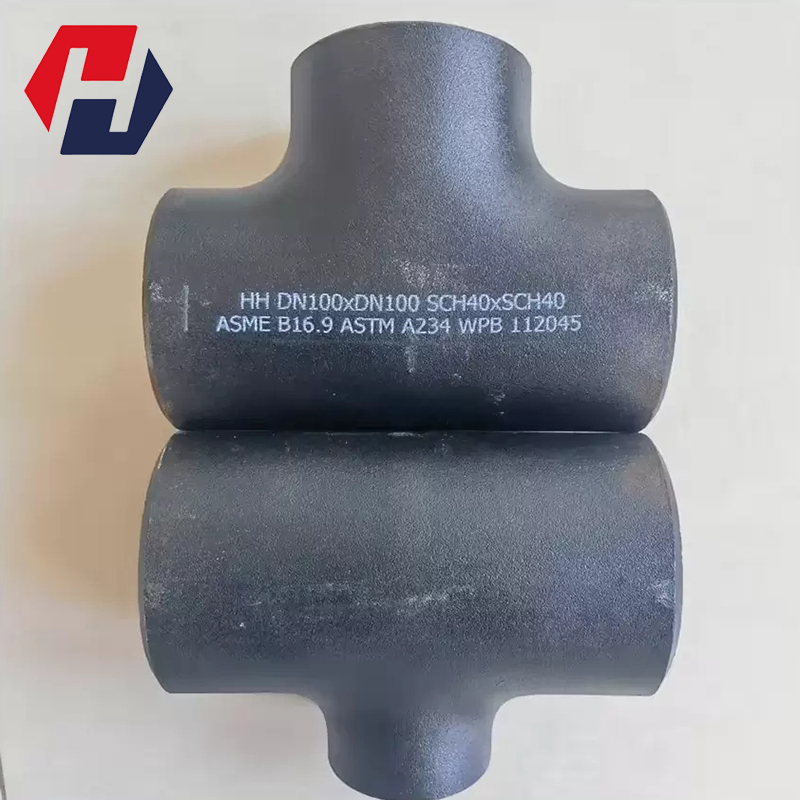

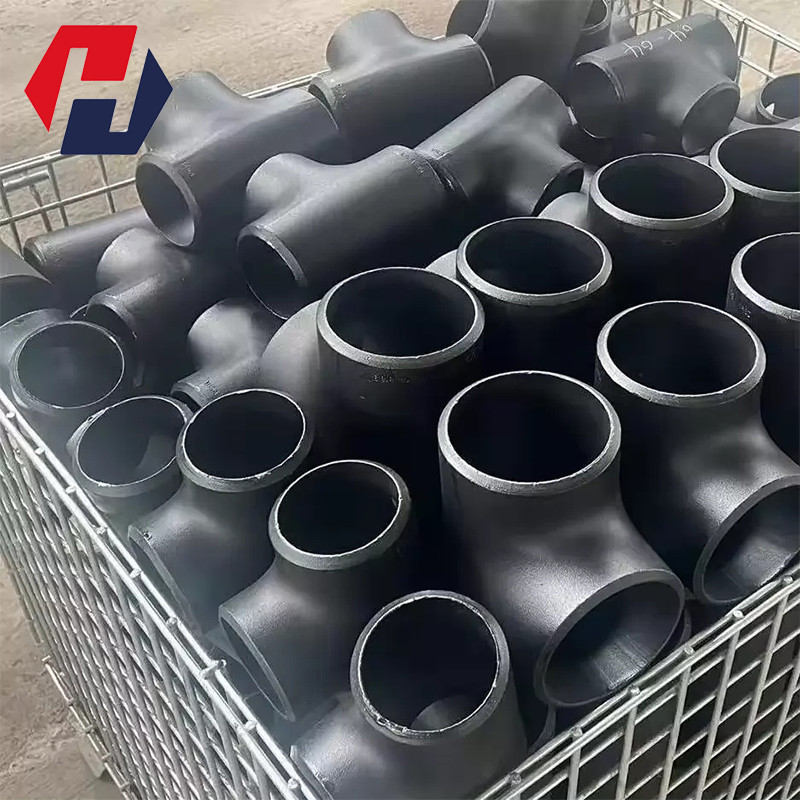

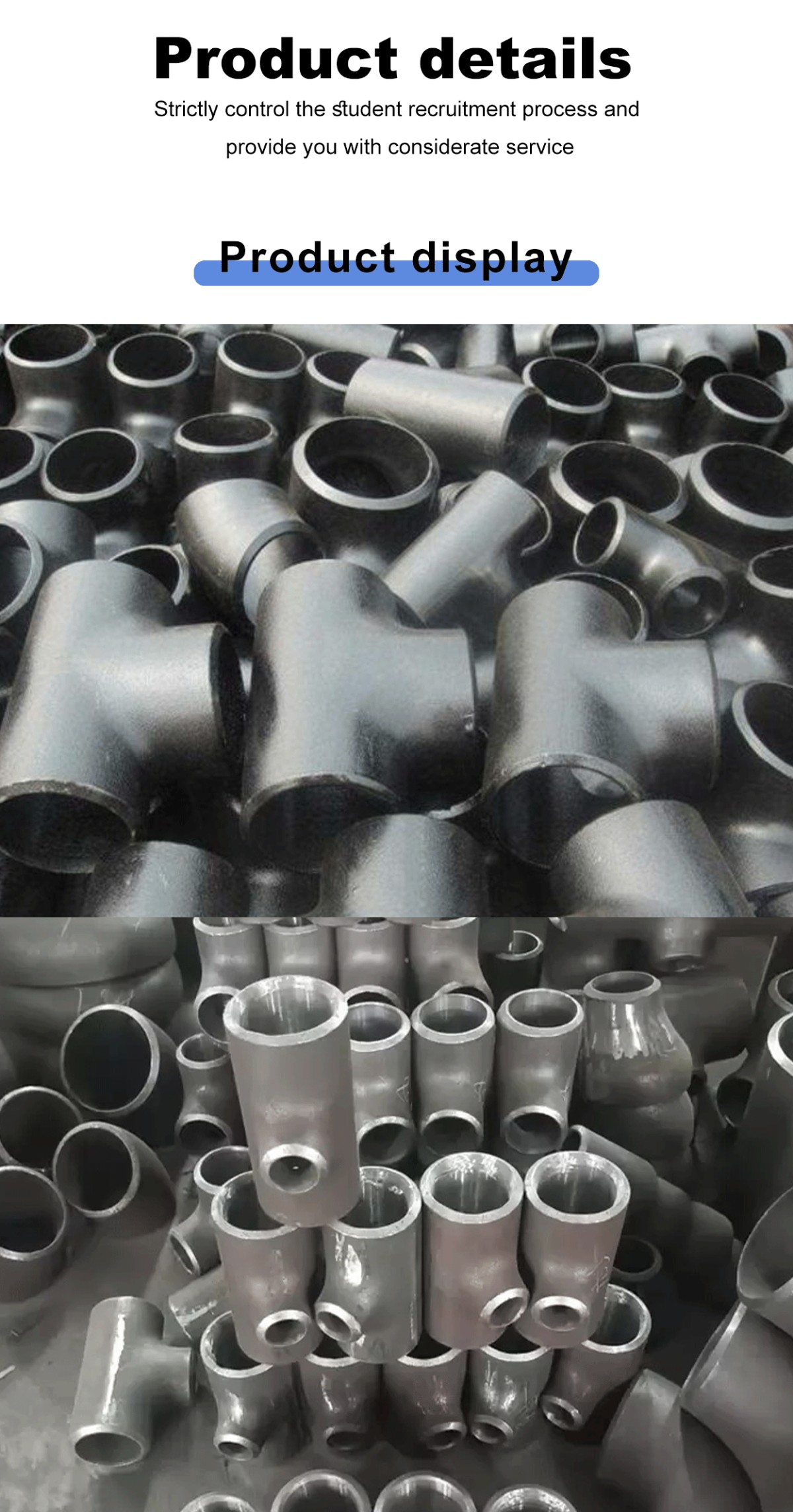

Tee Pipe

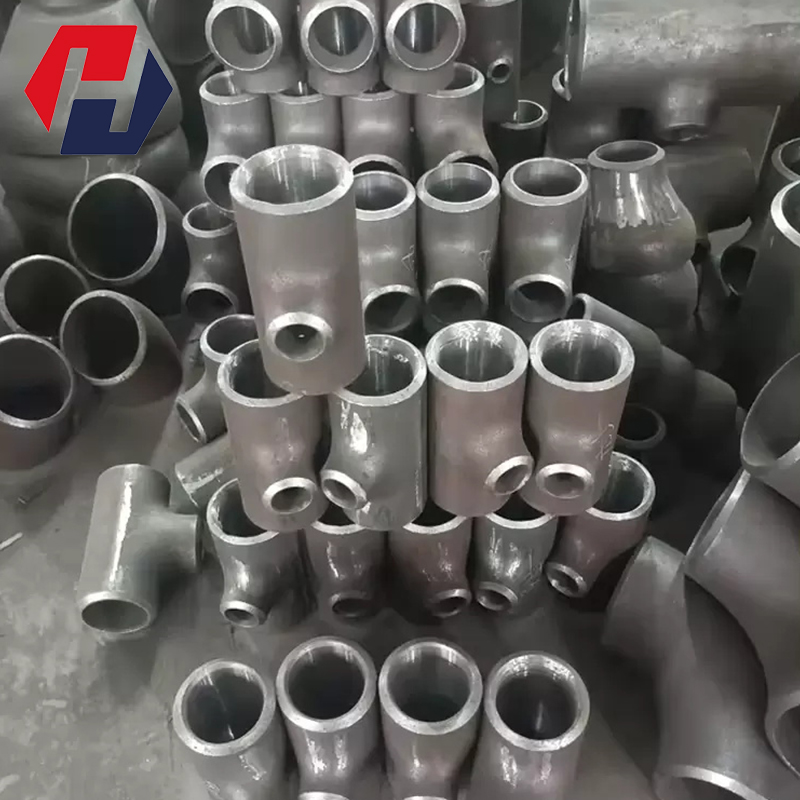

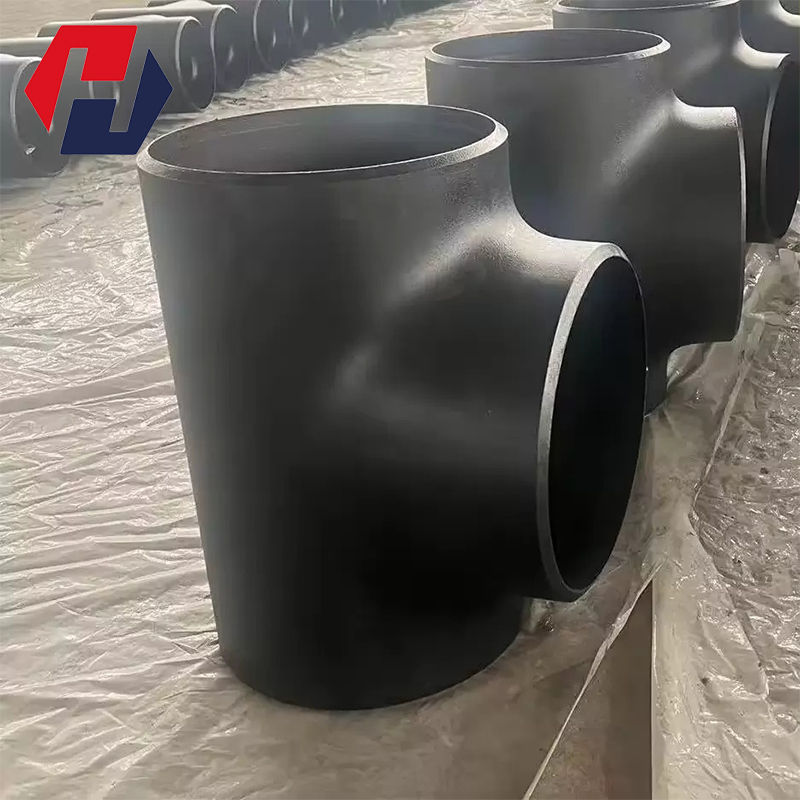

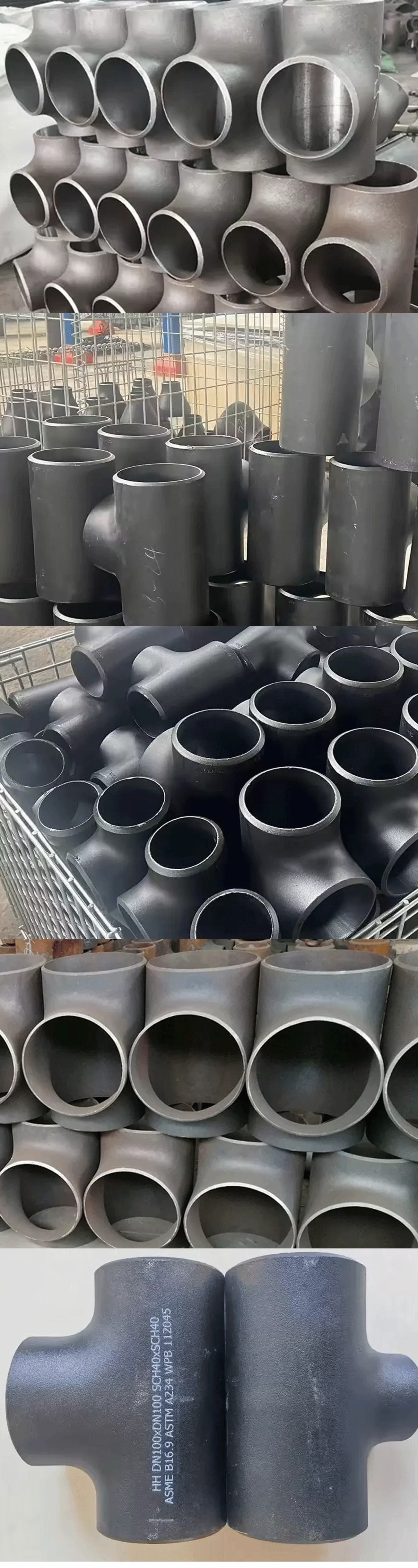

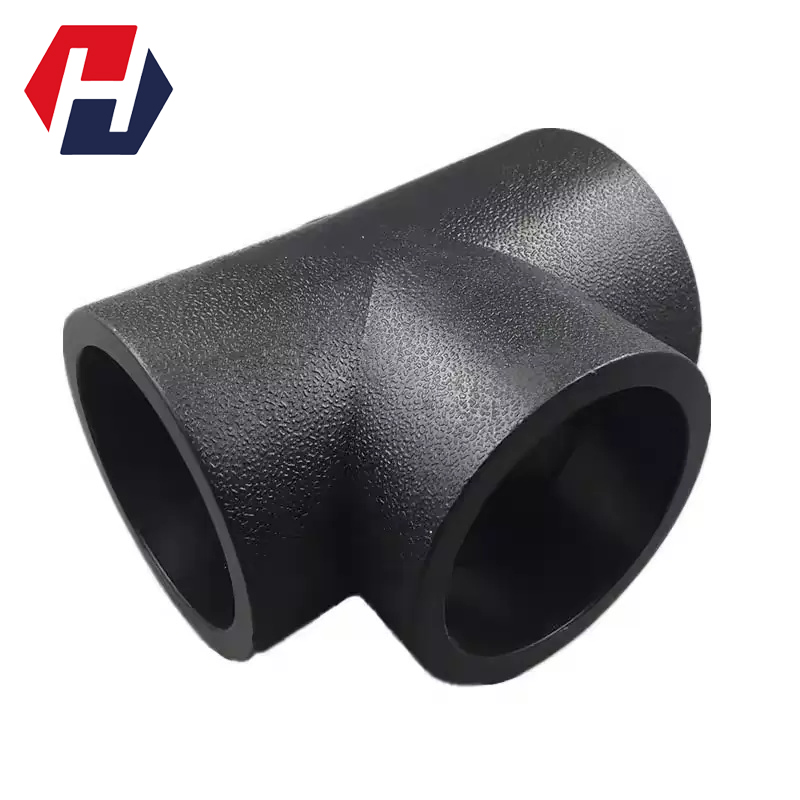

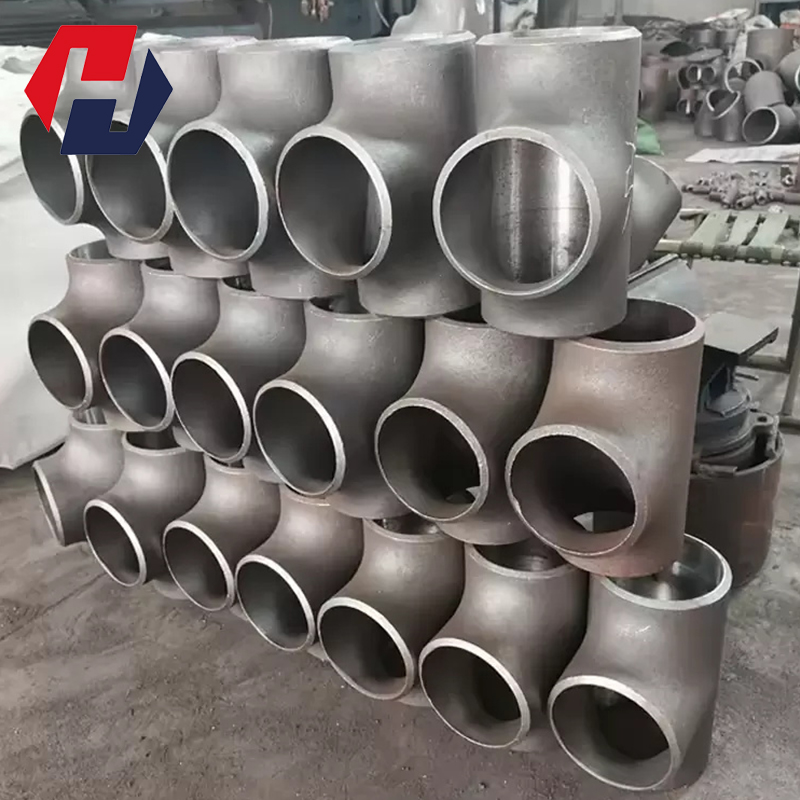

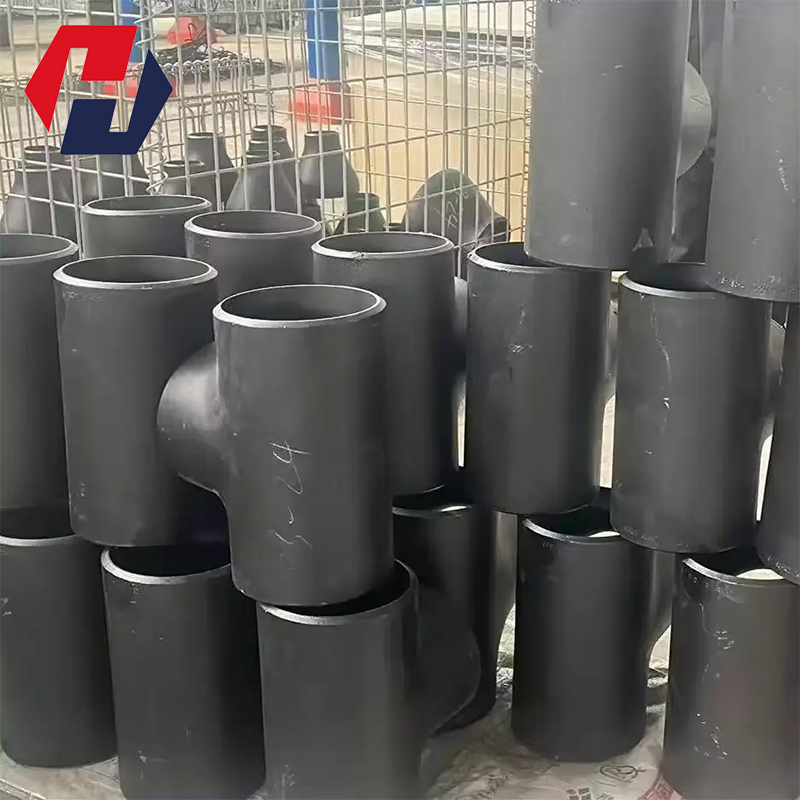

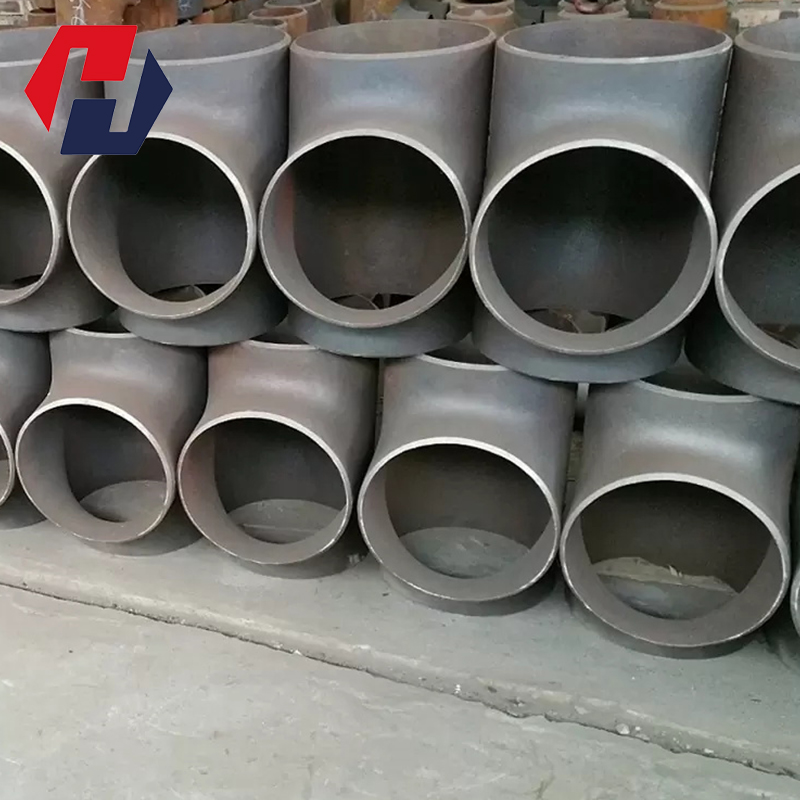

A pipe tee is a common pipe connection used to connect three pipes together so that fluid can flow in different directions. There are equal tees and reducing tees. Tee is usually made of cast iron, copper, stainless steel and other materials, with good corrosion resistance and high temperature resistance.

Contact：Samantha Z

Phone：+8613583116312

Whatsapp/Wechat：+8613583116312

Email： google@s-materialgroup.com

Address: Yingsheng Steel Market, Fengnan District, Tangshan City, Hebei Province

Product Specifications

Product Details

In a piping system, a elbow is a pipe fitting that changes the direction of the pipe. According to the Angle, there are 45°,90° and 180° which are most commonly used, and other abnormal angle elbows such as 60° are also included according to engineering needs. Elbow materials are cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics.

				B	A		O		K
DN	NPS	Series A	Series B	Long Radius	Long Radius	Short Radius	Long Radius	Short Radius	Long Radius/A	Short Radius/B
15	1/2	21.3	18	16	38	-	76	-	48	-
20	3/4	26.9	25	19	38	-	76	-	51	-
25	1.1/2	33.7	32	22	38 25	25	76	51	56	41
32	1.1/4	42.4	38	25	48 32	32	95	64	70	52
40	1.1/2	48.3	45	29	57 38	38	114	76	83	62
50	2	60.3	57	35	76 51	51	152	102	106	81
65	2.1/2	76.1(73)	76	44	95 64	64	190	127	132	100
80	3	88.9	89	51	114 76	76	229	152	159	121
90	3.1/2	101.6	-	57	133 89	89	267	178	184	140
100	4	114.3	108	64	152 102	102	305	203	210	159
125	5	139.7	133	79	190 127	127	381	254	262	197
150	6	168.3	159	95	229 152	152	457	305	313	237
200	8	219.1	219	127	305 203	203	610	406	414	313
250	10	273	273	159	381 254	254	762	508	518	391
300	12	323.9	325	190	457 305	305	914	610	619	467
350	14	355.6	377	222	533 356	356	1067	711	711	533
400	16	406.4	426	254	610 406	406	1219	813	813	610
450	18	457.2	478	286	686 457	457	1372	914	914	686
500	20	508	529	318	762 508	508	1524	1016	1016	762

Models	OD(A/B)		Path	Exit	Aperture error range
1/2"	21	18	25	25
3/4”	27	28	29	29
1”	34	32	38	38	+1.6 -0.8
1-1/4"	42	38	48	48
1-1/2"	48	45	57	57
2”	60	57	64	64
2-1/2"	73	76	76	76
3”	89	89	86	86	±1.6
3-1/2”	101.6		95	95
4”	114	108	105	105
5”	140	133	124	124	+2.4 -1.6
6”	168	159	143	143
8”	219	219	178	178
10"	273	273	216	216	+4.0 -3.2
12"	325	325	254	254
14"	355	377	279	279
16"	406	426	305	305
18"	457	480	343	343
20"	508	529	381	381	+6.4 -4.8
22"	559		419	419
24”	610	630	432	432
26"	660		495	495
28"	711	720	521	521
30"	762		559	559
32"	813	820	597	597
34”	864		635	635
36"	914	920	673	673

NO.	Models	OD of end nozzle				Half LengthC	Height from Side tube end toTee centerM
		Series A		Series B
		D₁	D₂	D₁	D₂
1	100×100×40	114.3	48.3	108	45	118	112
2	100×100×50	114.3	60.3	108	57	118	112
3	100×100×65	114.3	76.1(73)	108	76	118	115
4	100×100×80	114.3	88.9	108	89	118	118
5	100×100×90	114.3	101.6			118	118
6	100 equal tee	114.3	114.3	108	108	118	118
7	125×125×50	139.7	60.3	133	57	140	132
8	125×125×65	139.7	76.1(73)	133	73	140	132
9	125×125×80	139.7	88.9	133	89	140	132
10	125×125×90	139.7	101			140	136
11	125×125×100	139.7	114.3	133	108	140	136
12	125 equal tee	139.7	139.7	133	133	140	140
13	150×150×65	168.3	76.1(73)	159	73	165	150
14	150×150×80	168.3	88.9	159	89	165	150
15	150×150×90	168.3	101.6	-	-	165	150
16	150×150×100	168.3	114.3	159	108	165	155
17	150×150×125	168.3	139.7	159	133	165	160
18	150 equal tee	168.3	168.3	159	159	165	165
19	175×175×80	193.7	88.9	194	89	180	170
20	175×175×90	193.7	101.6	-	-	180	170
21	175×175×100	193.7	114.3	194	108	180	175
22	175×175×125	193.7	139.7	194	133	180	175
23	175×175×150	193.7	168.3	194	159	180	180
24	175 equal tee	193.7	193.7	194	194	180	180
25	200×200×90	219.1	101.6		-	206	195
26	200×200×100	219.1	114.3	219	108	206	195
27	200×200×125	219.1	139.7	219	133	206	200
28	200×200×150	219.1	168.3	219	159	206	200
29	200×200×175	219.1	193.7	219	194	206	206
30	200 equal tee	219.1	219.1	219	219	206	206
31	225×225×100	244.5	114.3	245	108	224	206
32	225×225×125	244.5	139.7	245	133	224	218
33	225×225×150	244.5	168.3	245	159	224	218
