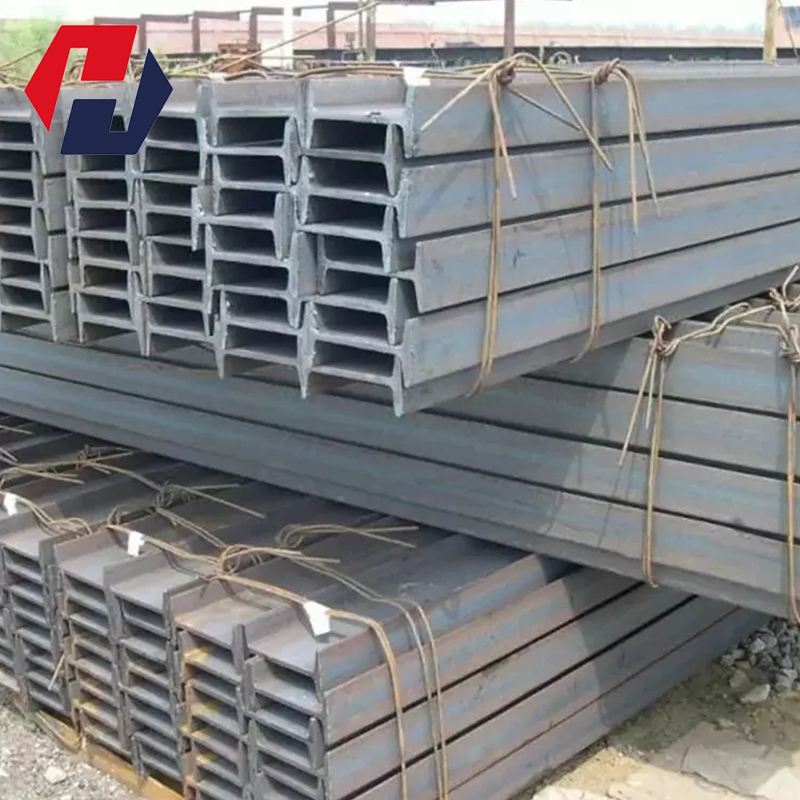

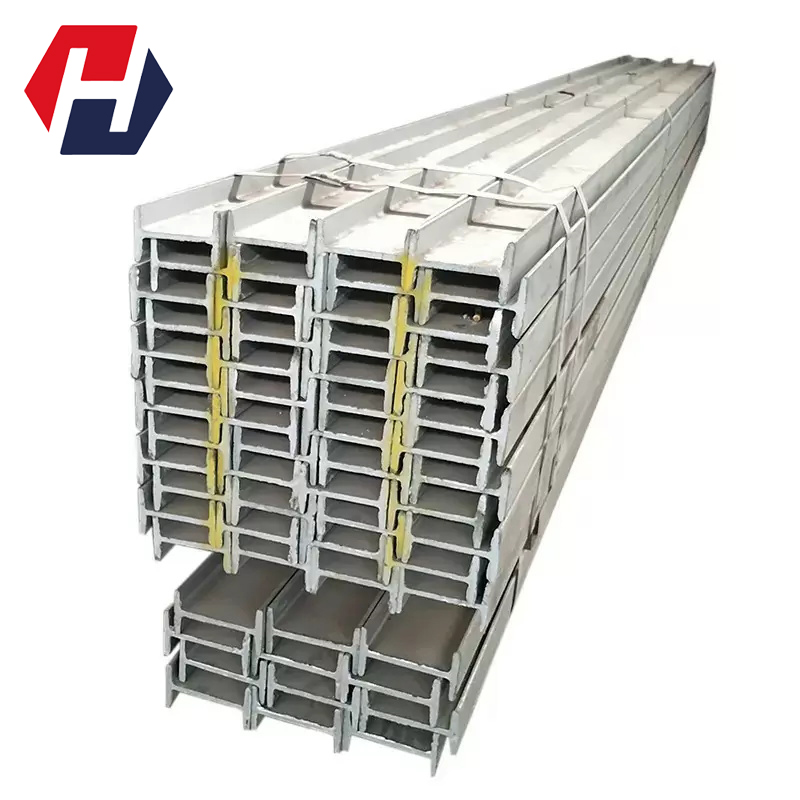

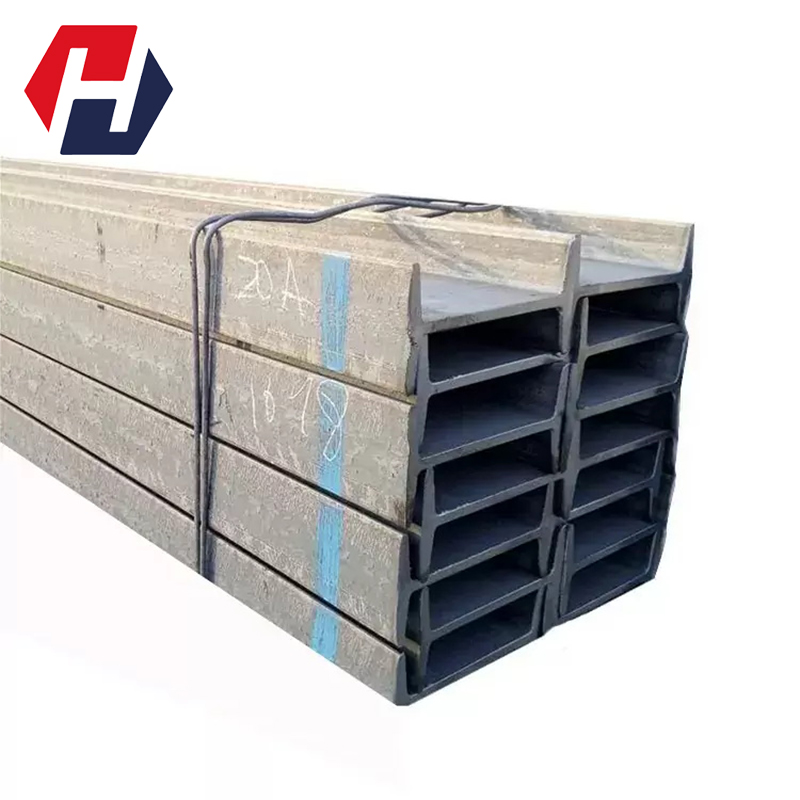

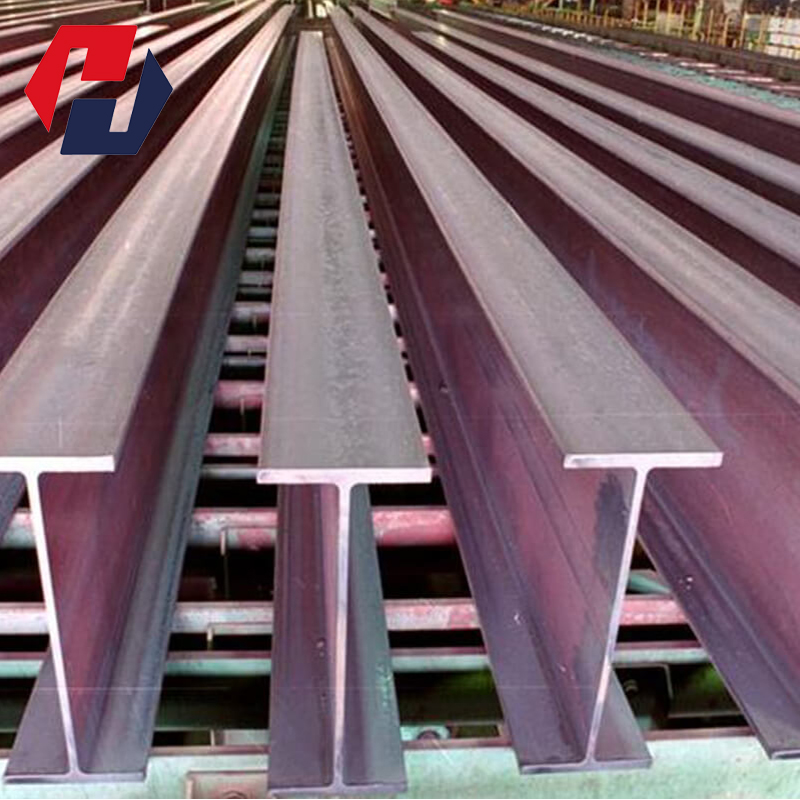

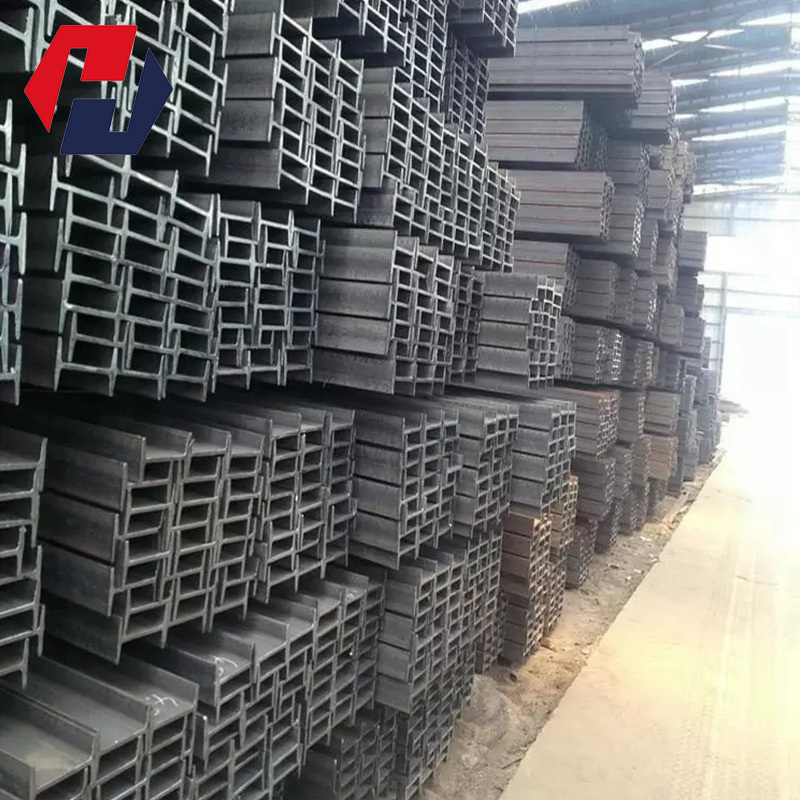

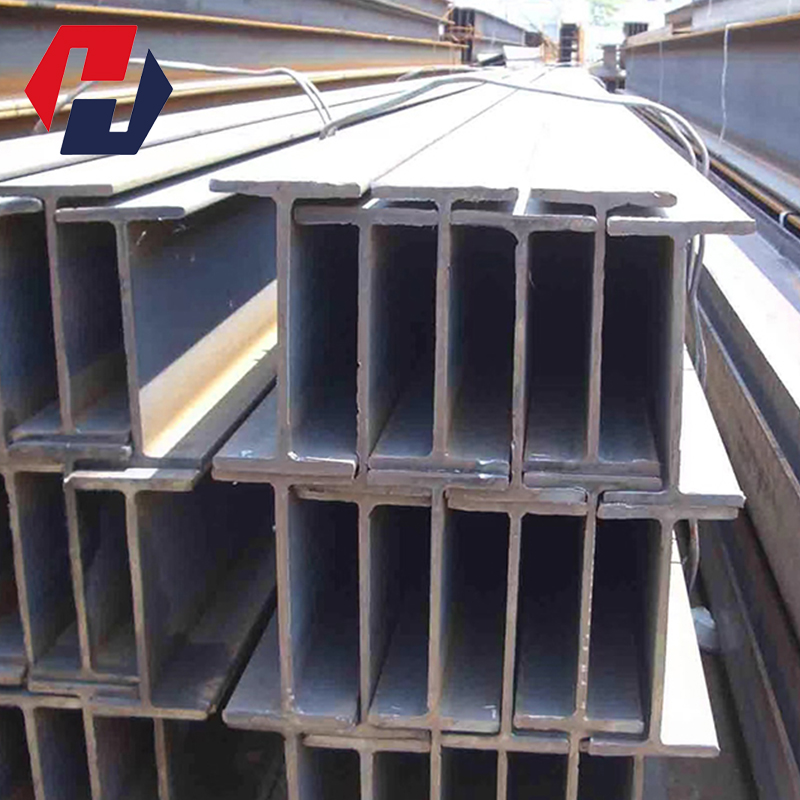

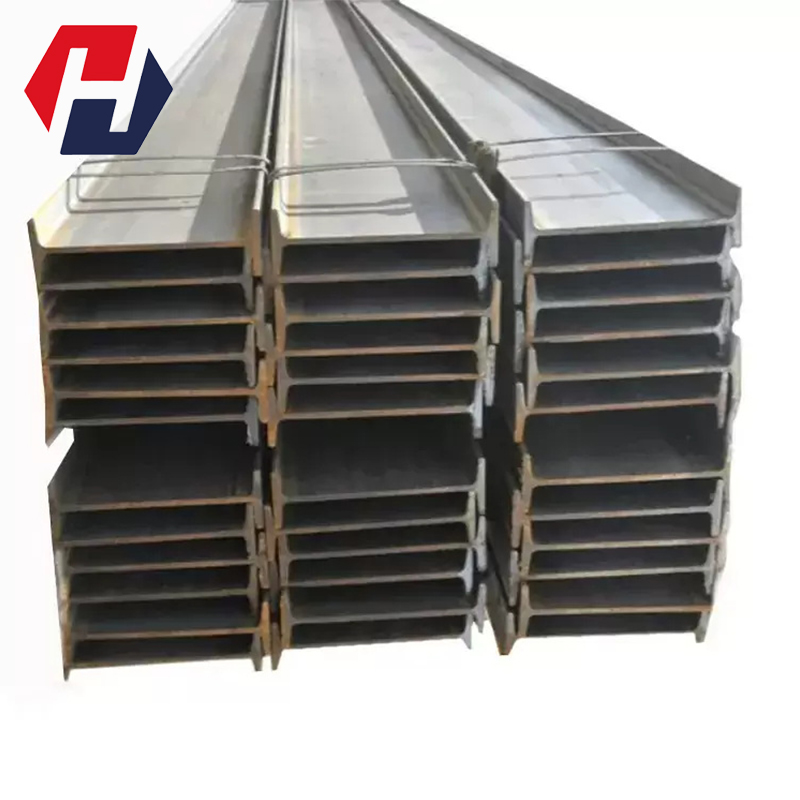

IPE
The European standard I-beam is also widely used, and can be used in mechanical manufacturing, steel structure manufacturing, and the use of beams.

Contact：Samantha Z

Phone：+8613583116312

Whatsapp/Wechat：+8613583116312

Email： google@s-materialgroup.com

Address: Yingsheng Steel Market, Fengnan District, Tangshan City, Hebei Province

Contact Us
Product Specifications

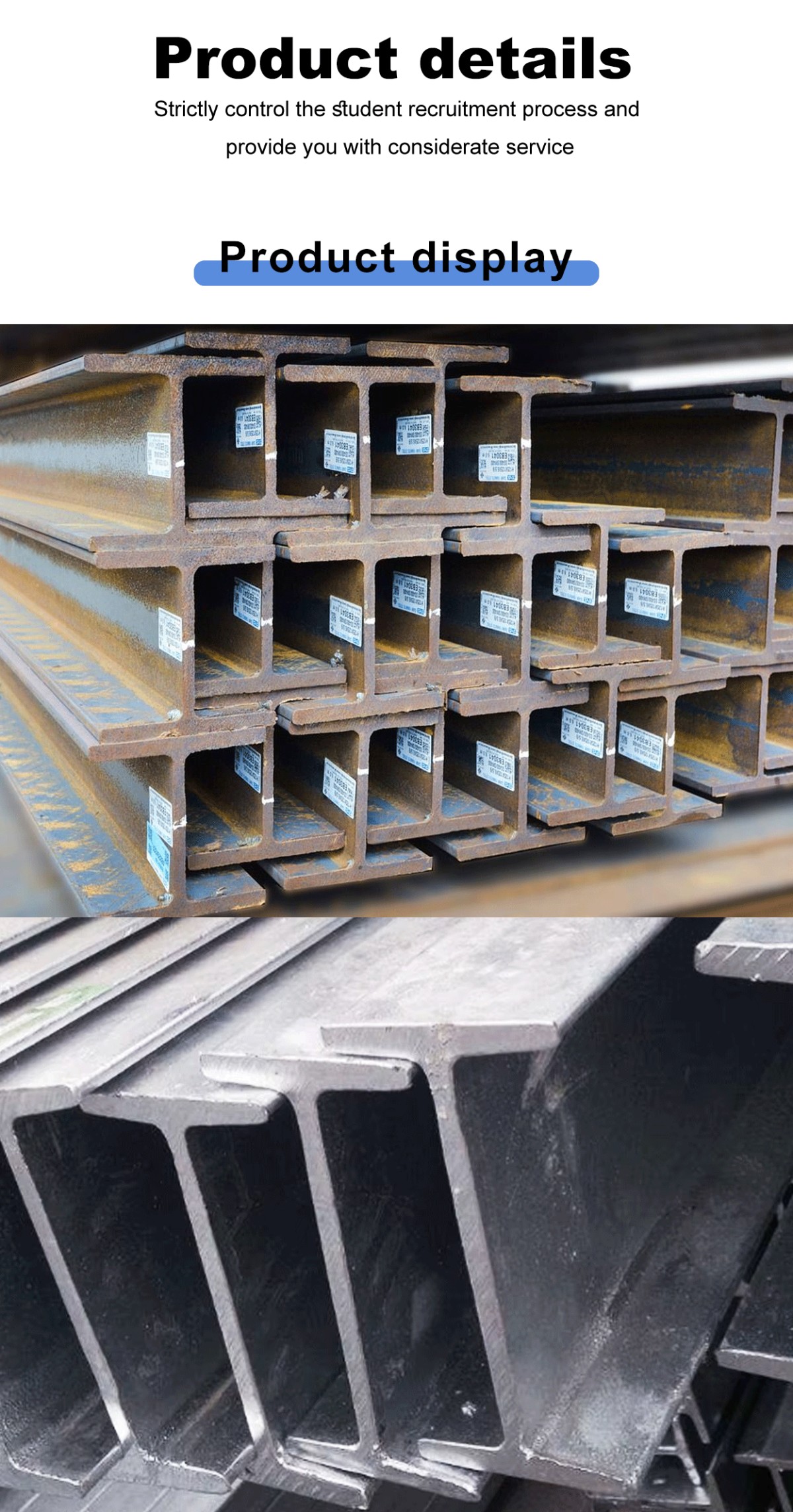

Product Details


The European standard I-beam is also widely used, and can be used in mechanical manufacturing, steel structure manufacturing, and the use of beams. The European standard I-beam specification is IPE80-IPE700.The difference between the European standard I-beam and the national standard I-beam is the difference between their specifications and sizes, as well as the method of expressing the specifications of the European standard I-beam. For example, the European standard I-beam uses IPE to represent different specifications and models, and the national standard I-beam uses #+8-56 to represent different models and sizes.The European standard I-beam material is represented by S235 and S355, 235 and 355 represent the strength of the material, S235JR represents the material of ordinary carbon, S355JR represents the material of low alloy, S355J0 represents the low temperature resistance of 0 °, S355J2 represents the low temperature resistance of - 20 °, and S355NL represents the low temperature resistance of - 40 °. Different materials also mean different uses.








High(H)100mm-900mm
Flange width(B)100mm-300mm
Web thickness(t1)6mm-16mm
Flange thickness(t2)8mm-28mm
Length6-12m/pc or as your request
StandardAISI, ASTM, BS, DIN, GB, JIS etc.
MaterialSS400, Q 235B,S235JR,Q345B, S355JR etc.
TechniqueHot rolled & Welded

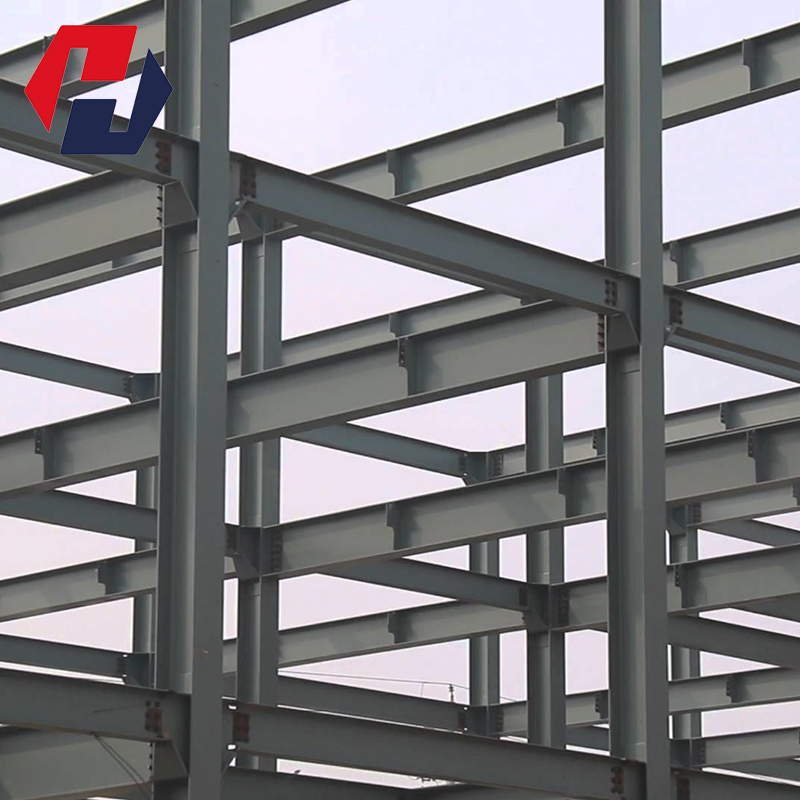

Application1.Industrial structure of the steel structure bearing bracket.2.Underground engineering steel pile and retaining structure.3.Petrochemical and electric power and other industrial equipment structure4.Large span steel bridge components5.Ships,machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket7.Port of conveyor belt, high speed damperbracket

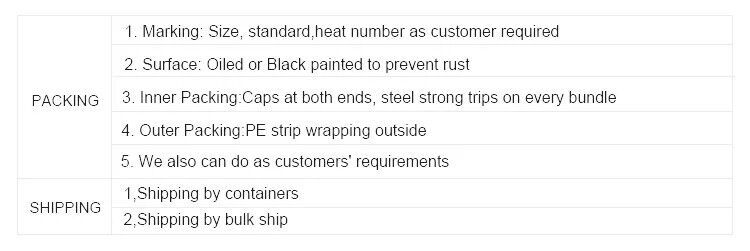

PackageStandard seaworthy packing or as required








European standard model SizeEuropean standard modelSize
IPE8080x46x3.8x5.2IPE270270x135x6.6x10.2
IPE100100x55x4.1x5.7IPE300300x150x7.1x10.7
IPE120120x64x4.4x6.3IPE330330x160x7.5x11.5
IPE140140x73x4.7x6.9IPE360360x170x8x12.7
IPE160160x82x5x7.4IPE400400x180x8.6x13.5
IPE180180x91x5.3x8IPE450450x190x9.4x14.6
IPE200200x100x5.6x8.5IPE500500x200x10.2x16
IPE220220x110x5.9x9.2IPE550550x210x11.1x17.2
IPE240240x120x3.2x9.8IPE600600x220x12x19













Application

1 )For road construction

2) For engineering construction

3) For steel structure engineering

4)For automotive parts manufacturing



FAQ:

Q1: Why choose us?

A: Our company have been in steel business for more than 20 years, we are internationally

experienced, professional, and we can provide variety of steel products with high quality to

our clients.


Q2: Can provide OEM/ODM service?

A: Yes. Please feel free to contact us for more details discuss.


Q3: How is your Payment Term?

A:One is 30% deposit by TT before production and 70% balance against copy of B/L; the other

is Irrevocable L/C 100% at sight.


Q4: Can we visit your factory?

A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team

to follow up your case.


Q5: Can you provide sample?

A: Yes, for regular sizes sample is free but buyer need to pay freight cost.
