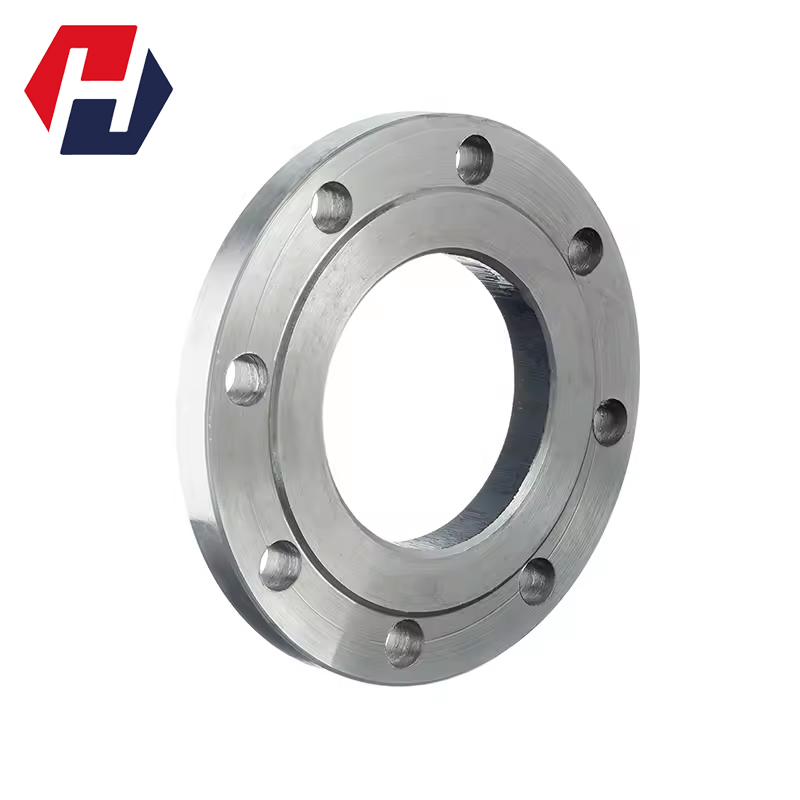

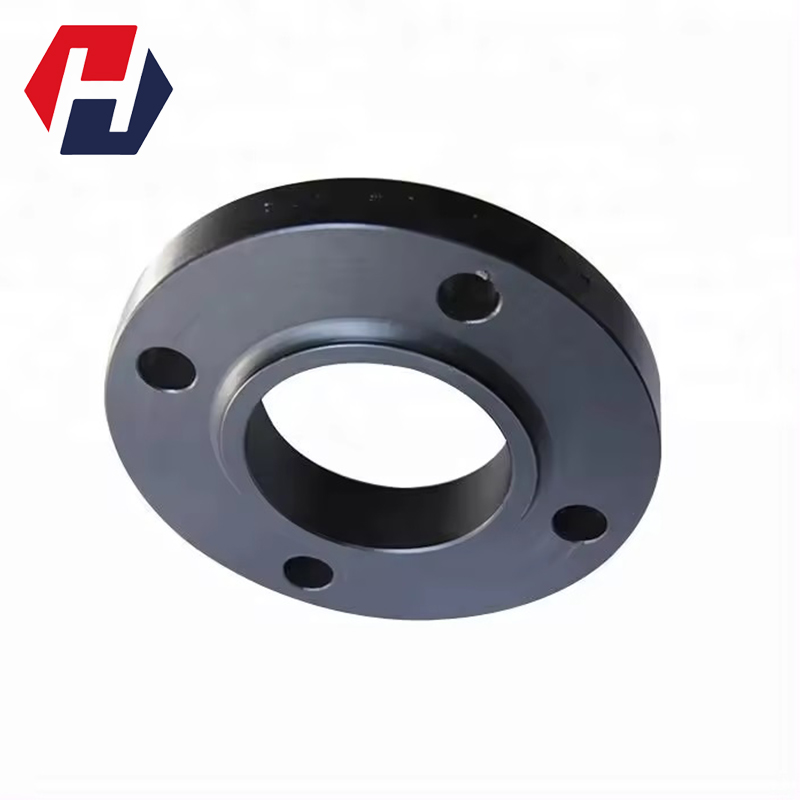

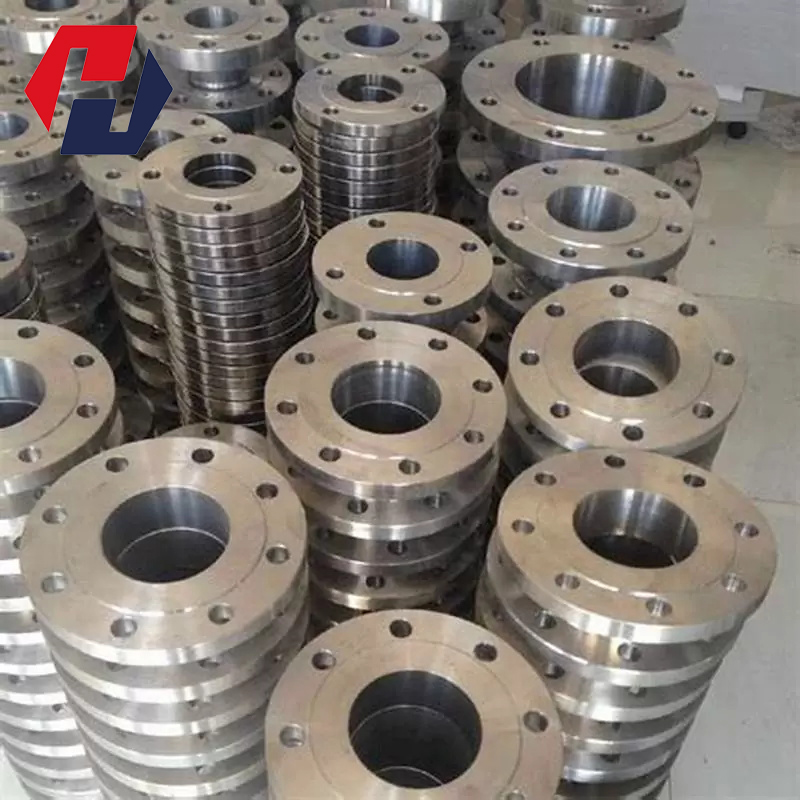

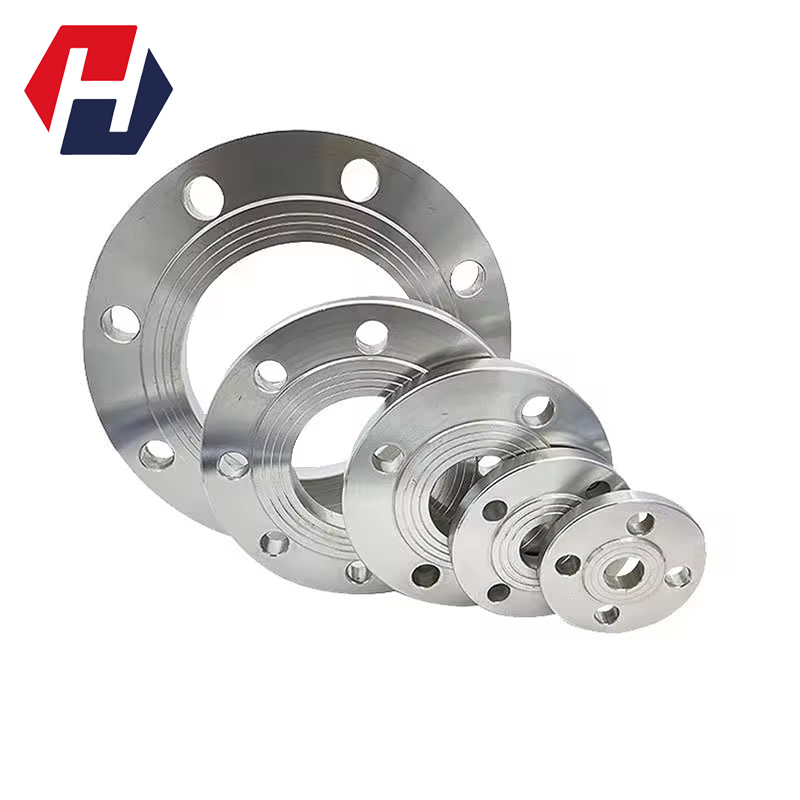

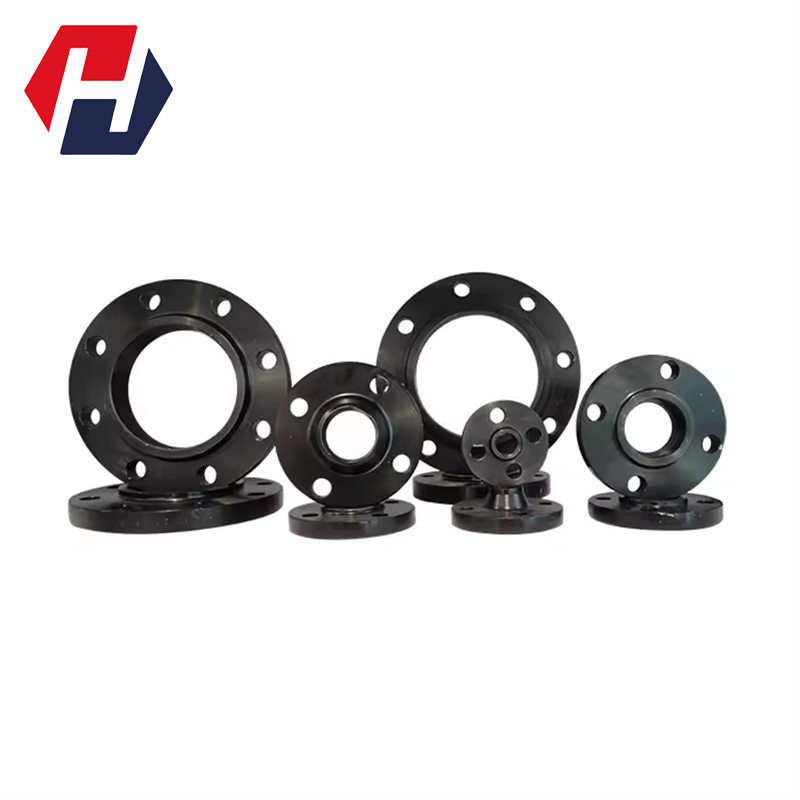

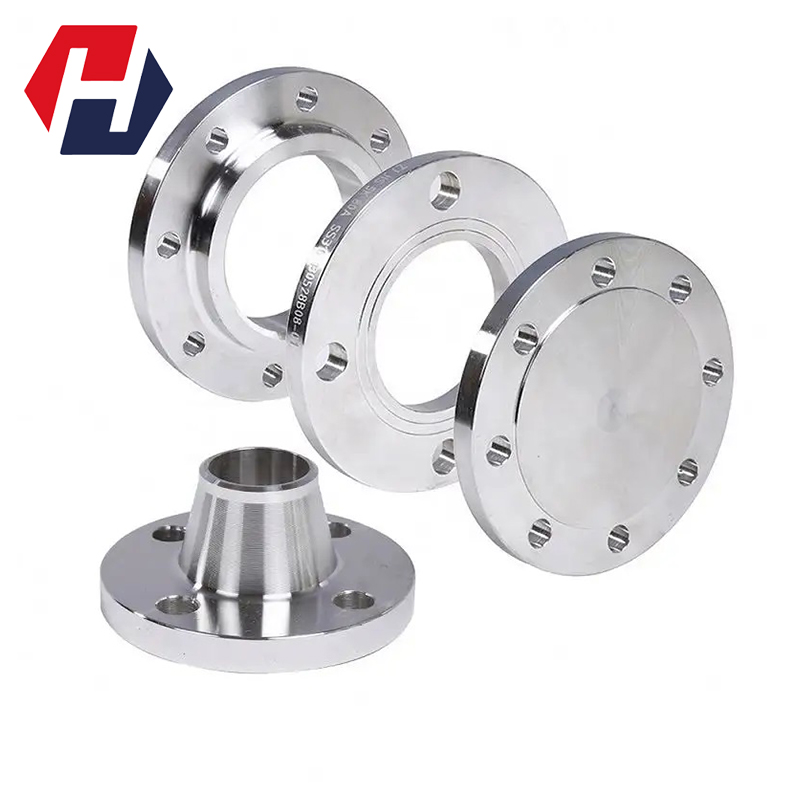

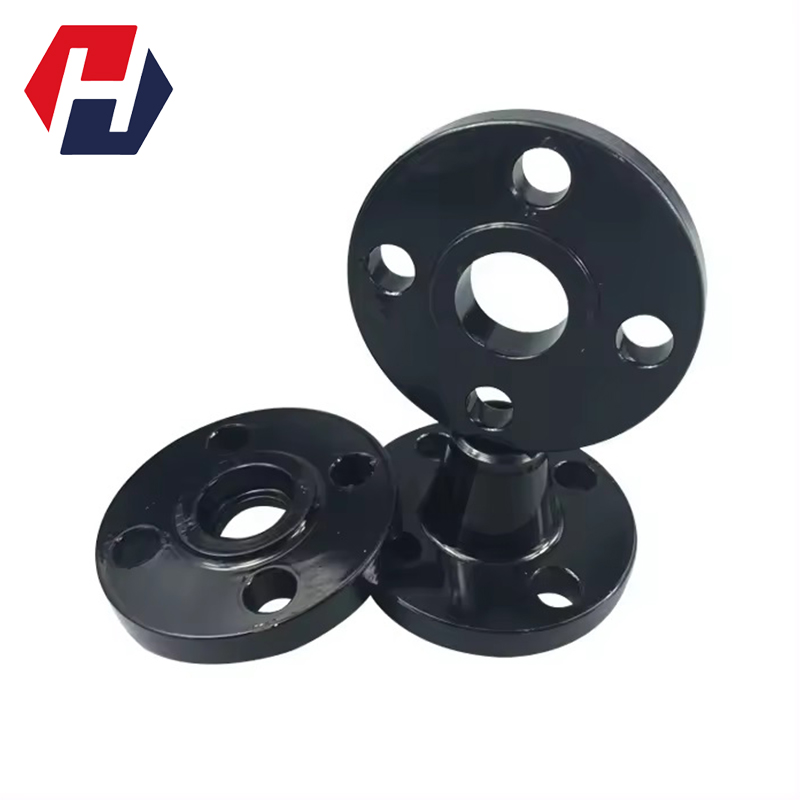

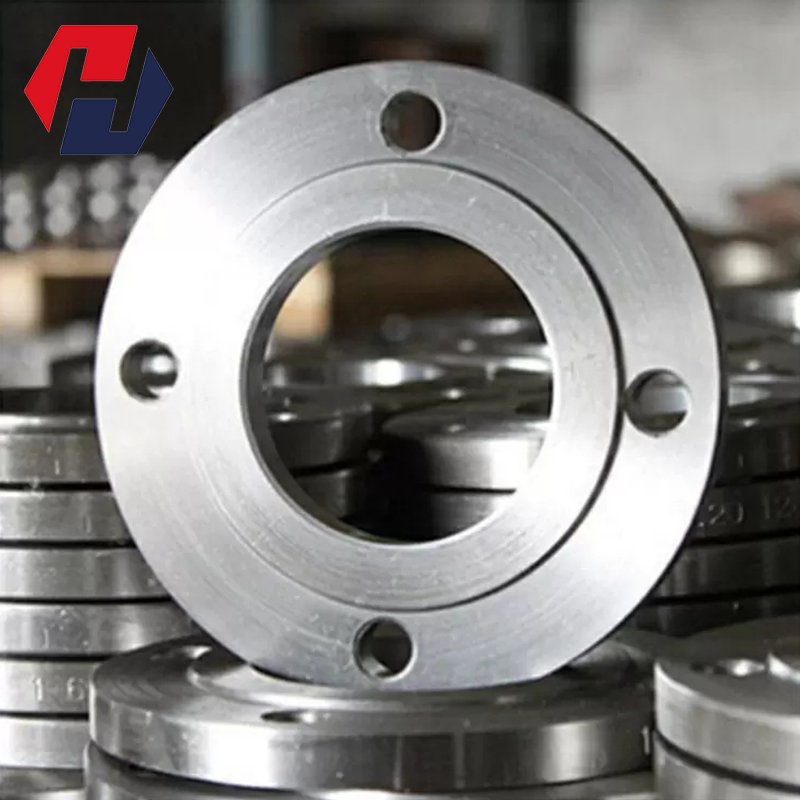

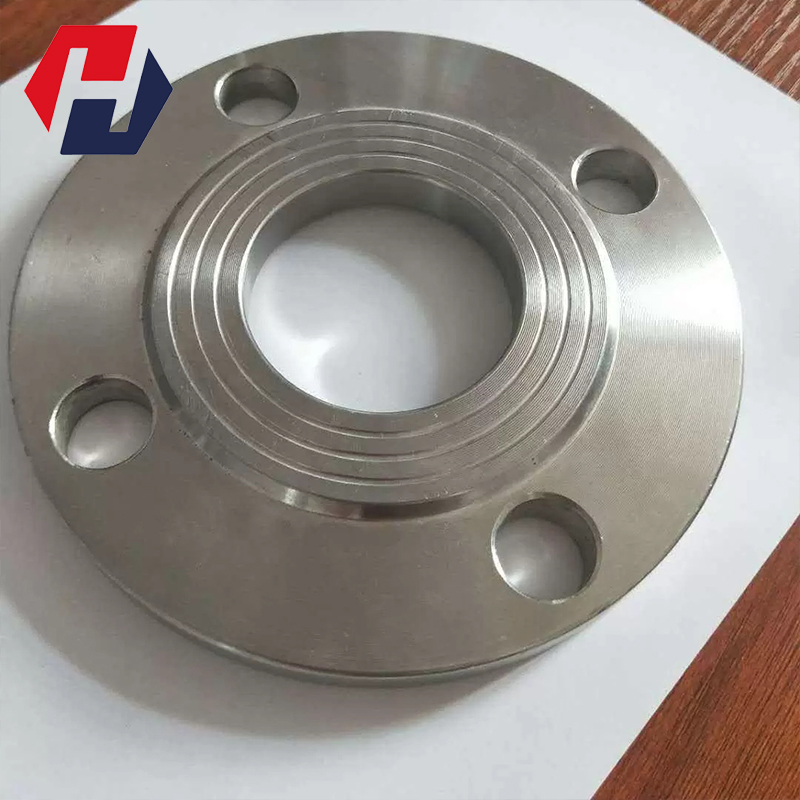

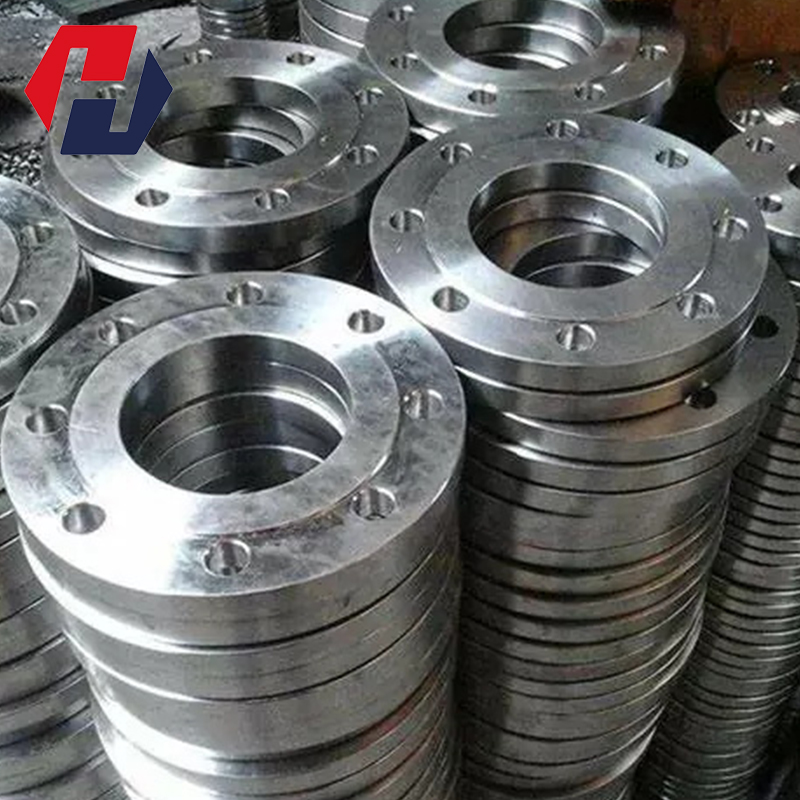

Flange

The pipe flange refers to the flange of the pipe distribution pipe in the pipe device, and the import and export flange of the equipment is used in the equipment.

Contact：Samantha Z

Phone：+8613583116312

Whatsapp/Wechat：+8613583116312

Email： google@s-materialgroup.com

Address: Yingsheng Steel Market, Fengnan District, Tangshan City, Hebei Province

Product Specifications

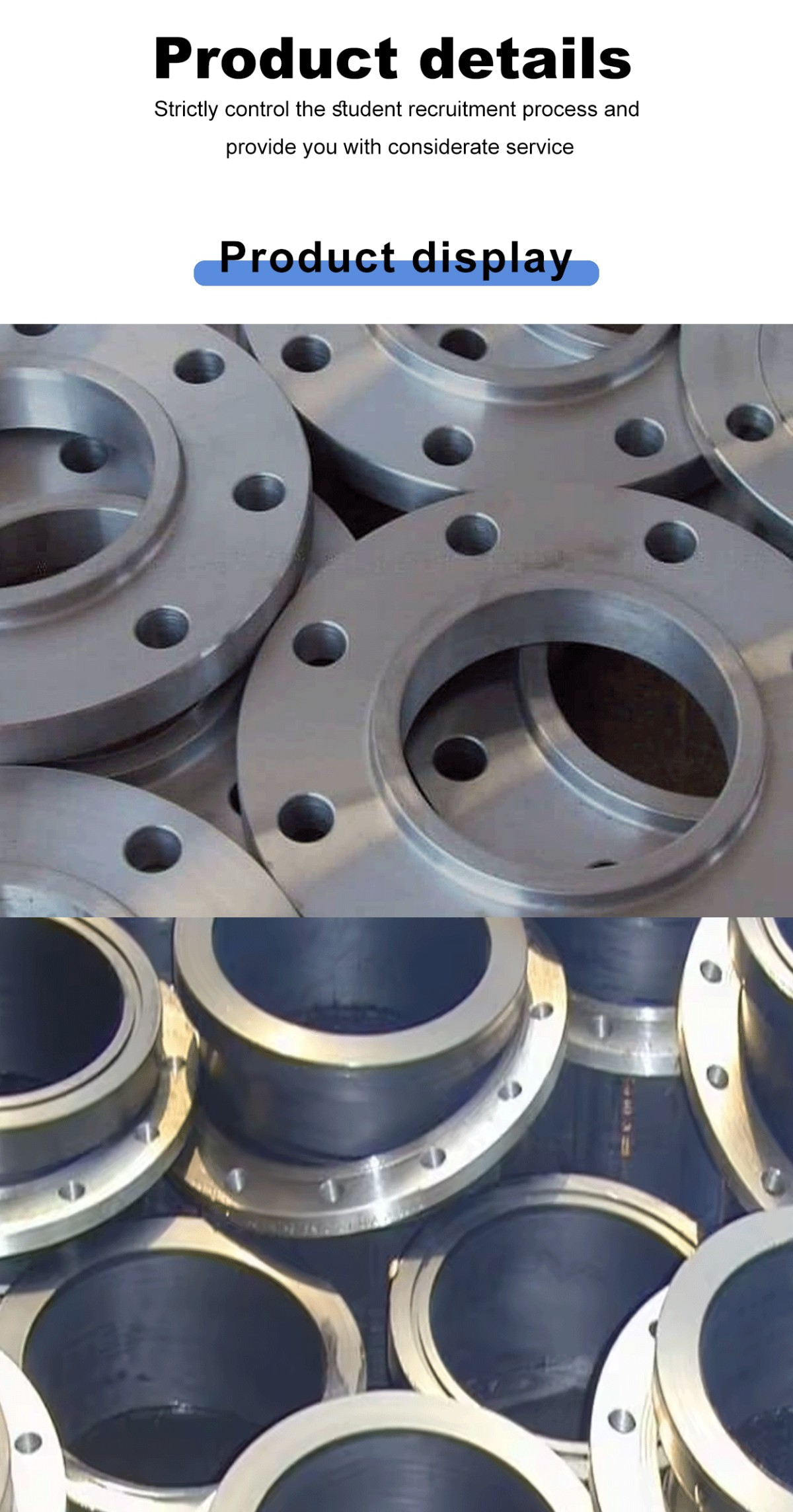

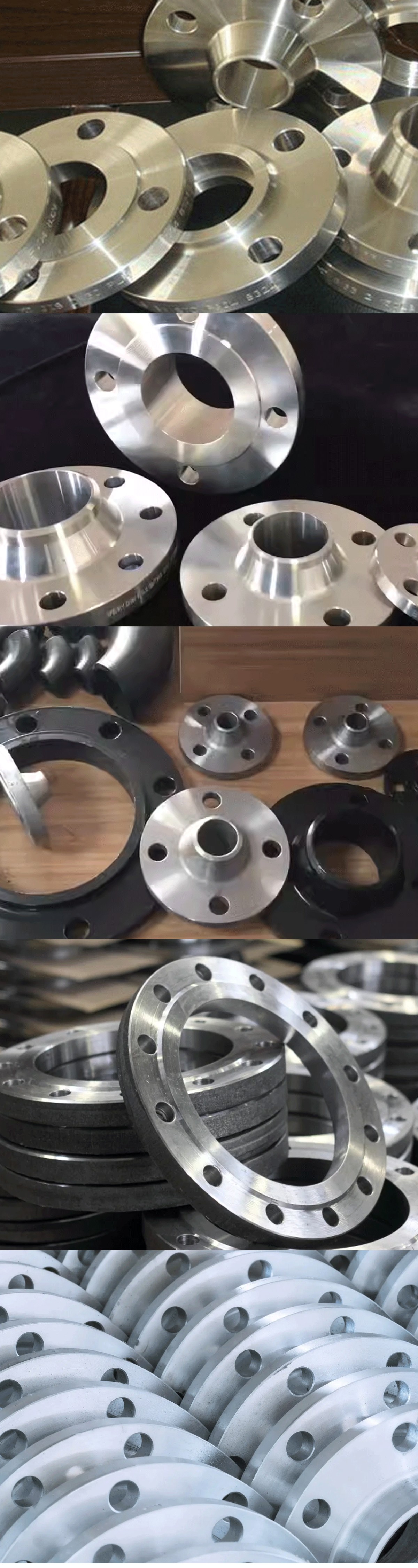

Product Details

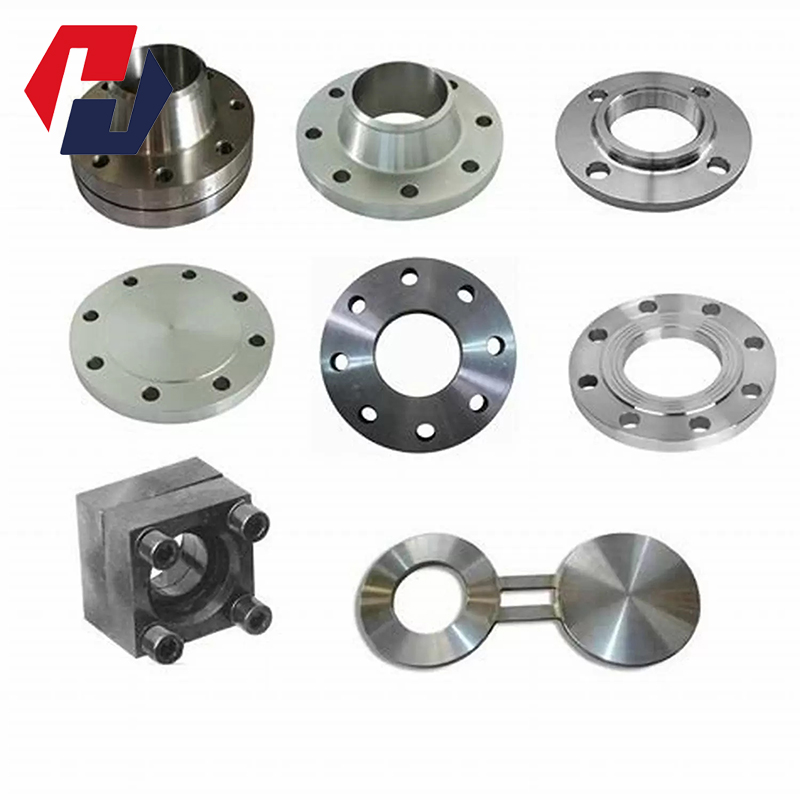

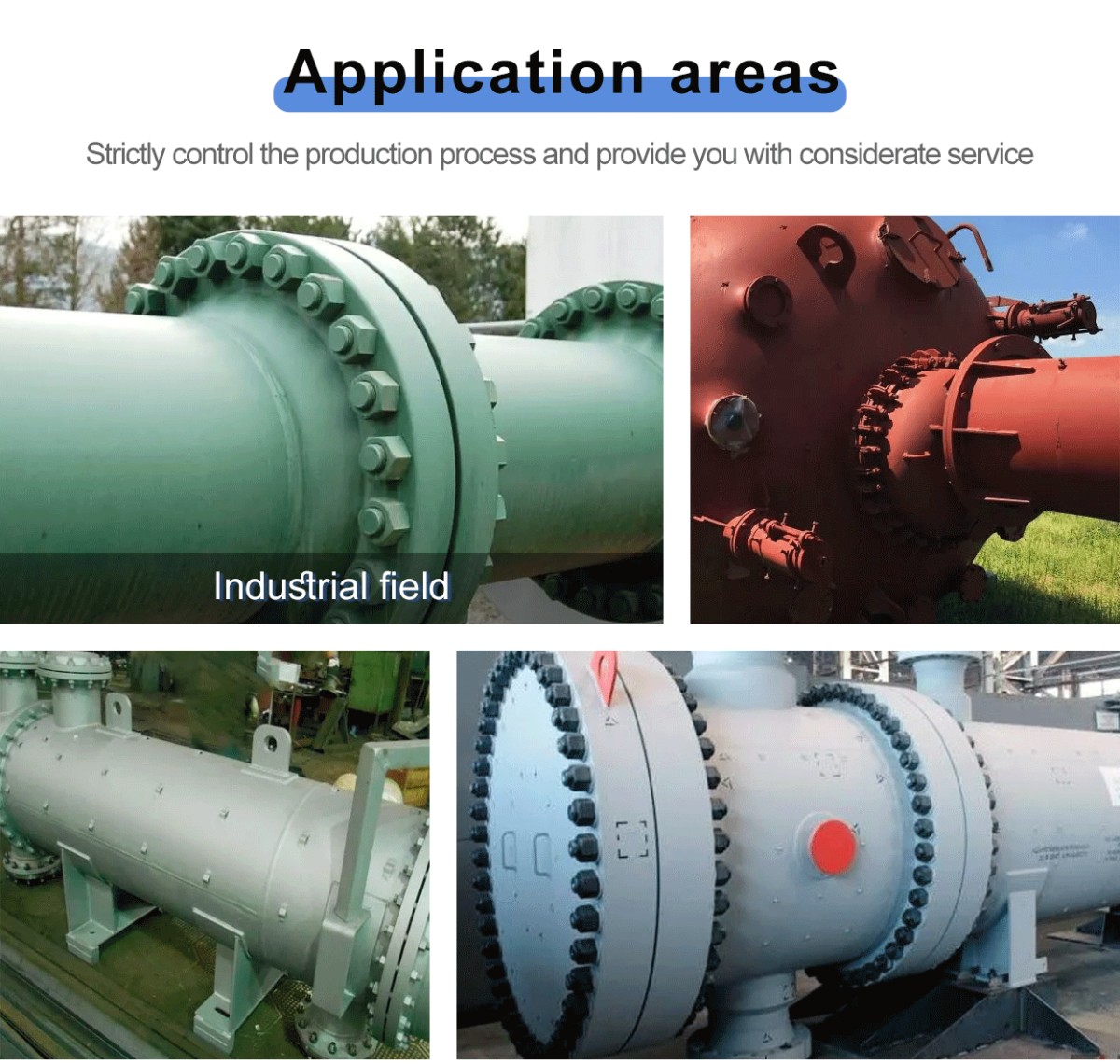

The pipe flange refers to the flange of the pipe distribution pipe in the pipe device, and the import and export flange of the equipment is used in the equipment. There are holes in the flange and bolts make the two flanges tightly connected. The flange is sealed with a gasket. Flanges are divided into threaded connection (thread connection) flanges, welded flanges and clamp flanges. Flanges are used in pairs, threaded connection flanges can be used for low pressure pipes, and welded flanges for more than four kilograms of pressure.

DNrated pressure		15						25						40
DNrated pressure		OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness	OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness	OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness
JIS	10K	95	70	15	4	12	12	125	90	19	4	16	14	140	105	19	4	16	16
	20K	95	70	15	4	12	12	125	90	19	4	16	14	140	105	19	4	16	16
	40K	115	80	19	4	16	20	130	95	19	4	16	22	160	120	23	4	20	24
ANSI	Class 150	88.9	60.5	15.7	4	12.7	14	108	79.2	15.7	4	12	16	127	98.6	15.7	4	12	18
	Class 300	95.3	60.5	15.7	4	12.7	14	124	88.9	19.1	4	16	16	155.4	114.3	22.4	4	19	18
	Class 600	95.3	60.5	15.7	4	12.7	14.2	124	88.9	19.1	4	16	17.5	155.4	114.3	22.4	4	19	22.4
GB(DIN)	1.0MPa	95	65	14	4	12	14	115	85	14	4	12	16	150	110	18	4	16	18
	1.6MPa	95	65	14	4	12	14	115	85	14	4	12	16	150	110	18	4	16	18
	2.5MPa	95	65	14	4	12	14	115	85	14	4	12	16	150	110	18	4	16	18
	4.0MPa	95	65	14	4	12	14	115	85	14	4	12	16	150	110	18	4	16	18

DNrated pressure		50						80						100
DNrated pressure		OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness	OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness	OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness
JIS	10K	155	120	19	4	16	16	185	150	19	8	16	18	210	175	19	8	16	18
	20K	155	120	19	8	16	16	200	160	23	8	20	20	225	185	23	8	20	22
	40K	165	130	19	8	16	26	210	170	23	8	20	32	250	205	25	8	22	36
ANSI	Class 150	152.4	120.7	19.1	4	16	20	190.5	152.4	19.1	4	16	20	228.6	190.5	19.1	8	16	22
	Class 300	165.1	127	19.1	8	16	20	209.6	168.1	22.4	8	19.1	20	254	200.2	22.4	8	19	22
	Class 600	165.1	127	19.1	8	16	25.4	209.6	168.1	22.4	8	19.1	31.75	273	215.9	25.4	8	22.2	38.1
GB(DIN)	1.0MPa	165	125	18	4	16	20	200	160	18	8	16	20	220	180	18	8	16	22
	1.6MPa	165	125	18	4	16	20	200	160	18	8	16	20	220	180	18	8	16	22
	2.5MPa	165	125	18	4	16	20	200	160	18	8	16	20	235	190	22	8	20	22
	4.0MPa	165	125	18	4	16	20	200	160	18	8	16	24	235	190	22	8	20	24

DNrated pressure		150						200
DNrated pressure		OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness	OD	Central diameter	Aperture of thread	Bolt number	Screw thread	Thickness
JIS	10K	280	240	23		20	22	330	290	23	12	20	22
	20K	305	260	25	12	22	24	350	305	25	12	22	26
	40K	355	295	33	12	M30*3	44	405	305	33	12	M30*3	50
ANSI	Class 150	280	241	23	8	20	34	345	298	23	8	20	37
	Class 300	320	270	22	12	19	45	380	330	25	12	22	50
	Class 600	355.6	292.1	28.4	12	25.4	48	419.1	349.3	31.8	12	28.6	55
GB(DIN)	1.0MPa	285	240	22	8	20	24	340	295	22	8	20	24
	1.6MPa	285	240	22	8	20	24	340	295	22	12	20	24
	2.5MPa	300	250	26	8	24	24	360	310	26	12	24	30
	4.0MPa	300	250	26	8	24	28	375	320	30	12	27	34

Size of PN1.6MPa
DN	A	B	C	E	H	D	Bolt
50	160	125	100	3	16	18	4-M16
65	180	145	120	3	18	18	4-M16
80	195	160	135	3	20	18	8-M16
100	215	180	155	3	20	18	8-M16
125	245	210	185	3	22	18	8-M16
150	280	240	210	3	24	23	8-M20
200	335	295	265	3	26	23	12-M20
250	405	355	320	3	30	25	12-M22
300	460	410	375	4	30	25	12-M22
350	520	470	435	4	34	25	6-M22
400	580	525	485	4	36	30	16-M27
450	640	585	545	4	40	30	20-M27
500	705	650	608	4	44	34	20-M30
600	840	770	718	5	48	41	24-M36
700	910	840	788	5	50	41	24-M36
800	1020	950	898	5	52	41	24-M36
900	1120	1050	998	5	54	41	28-M36
1000	1255	1170	1110	5	56	48	28-M42

Size of PN2.5MPa
DN	A	B	C	E	H	D	Bolt
50	160	125	100	3	20	18	4-M16
65	180	145	120	3	22	18	8-M16
80	195	160	135	3	22	18	8-M16
100	230	190	160	3	24	23	8-M20
125	270	220	188	3	28	25	8-M22
150	300	250	218	3	30	25	8-M22
